Switch or Solenoid for Winch

[SierraBronco]

As a general rule, if the wire length from battery positive terminal is as long as the battery or longer, it is wise to put an inline fuse on the lead.

You can get reasonably good quality waterproof fuse holders that hold a high current ANL fuse.



https://www.amazon.com/DaierTek-Block-Truck-Automotive-Marine/dp/B0D1VBFKSX/ref=sr_1_1?crid=1QHF1HVW4FTXB&dib=eyJ2IjoiMSJ9.O356xiz73TEuOTTeqk7WVs0_Htw9y_f6KCez_I0unf7UUYPptV8BPYaA9y2NxpF7ulOU-n1q6StKCZx9Fj7LwfDBx3SV61vZpbMClJ22VzsLpDcpCxtsekQ7lY0Zx4HXHFenOeDE53PZ63V5B_Wnhov2qA97UaqMubdGvOnkzMJplckMCevx7MHqGIQsGQtulEt-2C5BPVjoTHbANGP4ONRLF52W68URYHkrh87hd0Yg22YUDPbsHqkU4Cdl_1_zHRFWDKRgLhvBoOEq4B0UqXktNV4YJYIO2BJApu8NCuD4377lAUrxz3m5y33TkrwU1-5Ogbg3OdK7CXav7xaE&dib_tag=se&keywords=waterproof+bolt+down+500+amp+anl&qid=1728906618&s=industrial&sprefix=waterproof+bolt+down+500+amp+anl,industrial,95&sr=1-1&th=1

The only reservation I have with ANL (using this one as a specific example. Keep in mind these are things I’ve discovered since the fire) is the surge rating. This fuse specifies use for a max of 750 amps, but there isn’t any clarification on whether that’s continuous or surge. If I looked into it correctly, our battery has a max surge (shorting situation) of 3200 amps. With ANL fuses if the surge is exceeded you can weld the fuse back to itself, completing the circuit. Searching the internet it seems 6000 max interrupt is common for ANL, but after seeing some of the independent tests done on Amazon fuses I’m wary of trusting something that isn’t specifically mentioned.

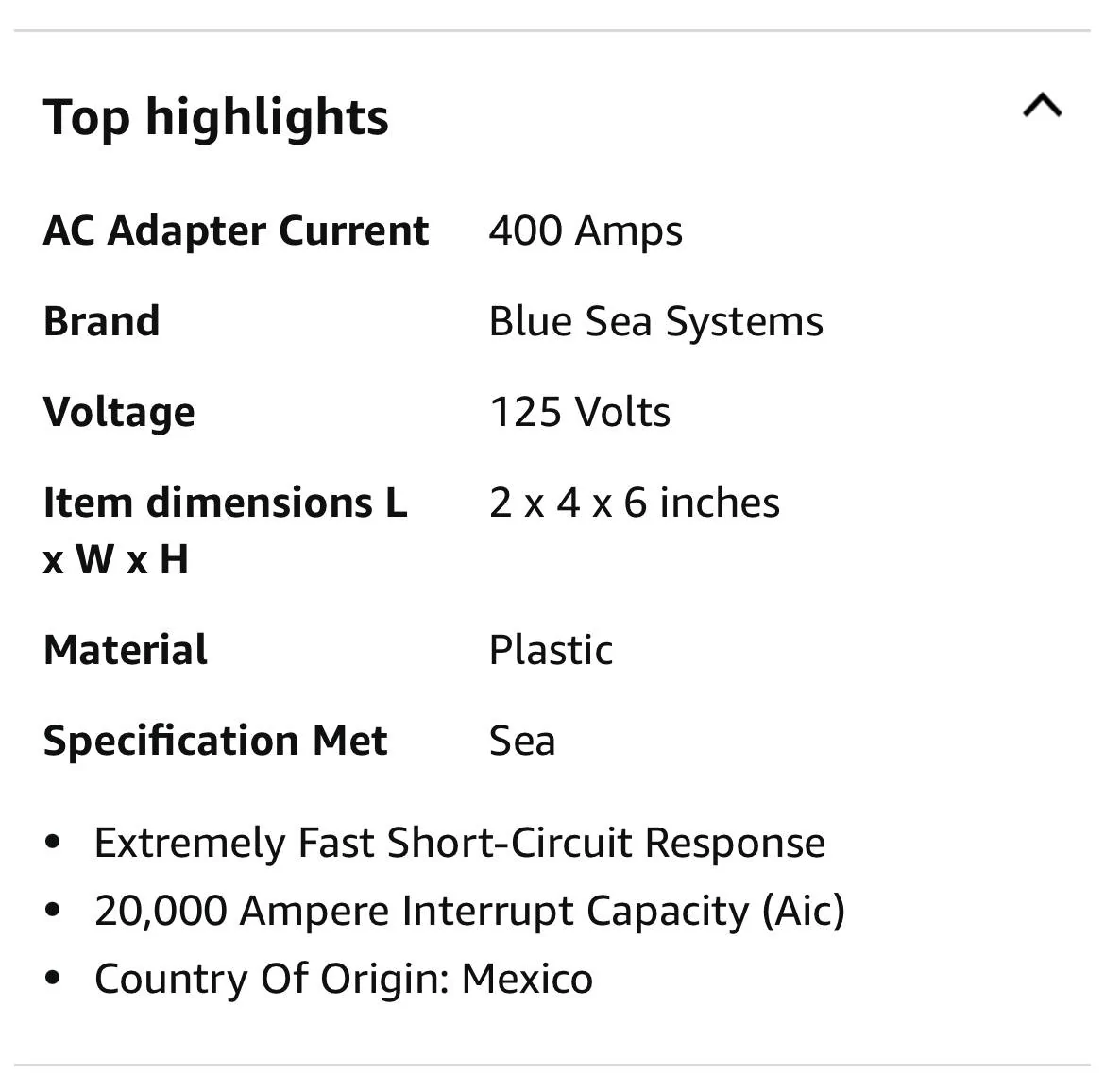

The class T fuse I linked earlier are rated for 20,000 max interrupt. Yeah, they’re more expensive, but I’ll take that any day over what I’m dealing with after the fire.

https://a.co/d/38HsoQh

Sponsored



[Brian_B]

I like this forum and participating. I would like to use the app. But it needs to work. Please fix.

I forgot they even had an app. I just use the website. Is there a good reason for the app to exist? Does it supposedly do anything that the web site can’t



[SierraBronco]

I forgot they even had an app. I just use the website. Is there a good reason for the app to exist? Does it supposedly do anything that the web site can’t

Doesn’t send you to the app store when using from the browser?

that actually might be the only thing it does. I’ll need to try uploading a picture or something from the browser to see if it’s better.



[Brian_B]

Doesn’t send you to the app store when using from the browser?

that actually might be the only thing it does. I’ll need to try uploading a picture or something from the browser to see if it’s better.

I never downloaded it so maybe that’s why. I think it asked once if I wanted to and I clicked no, maybe?



[SierraBronco]

I never downloaded it so maybe that’s why. I think it asked once if I wanted to and I clicked no, maybe?

I think that’s the only reason I downloaded it. Can’t remember.



[Rydfree]

The only reservation I have with ANL (using this one as a specific example. Keep in mind these are things I’ve discovered since the fire) is the surge rating. This fuse specifies use for a max of 750 amps, but there isn’t any clarification on whether that’s continuous or surge. If I looked into it correctly, our battery has a max surge (shorting situation) of 3200 amps. With ANL fuses if the surge is exceeded you can weld the fuse back to itself, completing the circuit. Searching the internet it seems 6000 max interrupt is common for ANL, but after seeing some of the independent tests done on Amazon fuses I’m wary of trusting something that isn’t specifically mentioned.

The class T fuse I linked earlier are rated for 20,000 max interrupt. Yeah, they’re more expensive, but I’ll take that any day over what I’m dealing with after the fire.

https://a.co/d/38HsoQh

The 750 Max in that link is not the surge rating but the max size fuse allowed with that fuse holder. It comes shipped with a 500 Amp ANL fuse. Over the 20 year span that I have experience in using these in high amp draw car stereo installations, I trust them. I've seen a few blow from accidents and a few from installer mishaps .You should only use the bolt down type and proper terminals on the wire ends and not the set screw type as mentioned by some already. The fuse should always be within a few inches of the terminal post as in this pic to protect the most wire downstream of the power source .



[Karl_in_Chicago]

I forgot they even had an app. I just use the website. Is there a good reason for the app to exist? Does it supposedly do anything that the web site can’t

What app? I just use a browser, wasn't even aware there is an app. Haven't found anything I can't do via a browser so not sure what I'm missing but then that wouldn't be the first time.



[SierraBronco]

The 750 Max in that link is not the surge rating but the max size fuse allowed with that fuse holder. It comes shipped with a 500 Amp ANL fuse. Over the 20 year span that I have experience in using these in high amp draw car stereo installations, I trust them. I've seen a few blow from accidents and a few from installer mishaps .You should only use the bolt down type and proper terminals on the wire ends and not the set screw type as mentioned by some already. The fuse should always be within a few inches of the terminal post as in this pic to protect the most wire downstream of the power source .

Right. All points I agree with. The situation in question is for a short to ground through 0G where the battery is given the opportunity to offload a huge amount of electricity. Seems it is a possibility that fuses can weld themselves back together, completing the circuit and not prevent a fire if the max interruption capacity (ampere interruption capacity) is exceeded. AMG is lowest, then ANL, then Class-T fuse. They could all be hooked up exactly the same with perfect connections and have the same amperage rating, but react differently in the worst case scenario due to AIC rating. That’s all I’m saying-it’s one of the things I’ve learned while getting further education on “what if” scenarios. Just like I now have a $450 fire extinguisher instead of the $30 extinguisher after experiencing the corrosion associated with the cheap extinguisher, I’m using $40 fuses instead of $23 fuses after learning the cheaper ones MIGHT, IN A VERY RARE SITUATION, weld themselves back together. Not that much more money for a little added protection.



[nolimits]

The only reservation I have with ANL (using this one as a specific example. Keep in mind these are things I’ve discovered since the fire) is the surge rating. This fuse specifies use for a max of 750 amps, but there isn’t any clarification on whether that’s continuous or surge. If I looked into it correctly, our battery has a max surge (shorting situation) of 3200 amps. With ANL fuses if the surge is exceeded you can weld the fuse back to itself, completing the circuit. Searching the internet it seems 6000 max interrupt is common for ANL, but after seeing some of the independent tests done on Amazon fuses I’m wary of trusting something that isn’t specifically mentioned.

The class T fuse I linked earlier are rated for 20,000 max interrupt. Yeah, they’re more expensive, but I’ll take that any day over what I’m dealing with after the fire.

https://a.co/d/38HsoQh

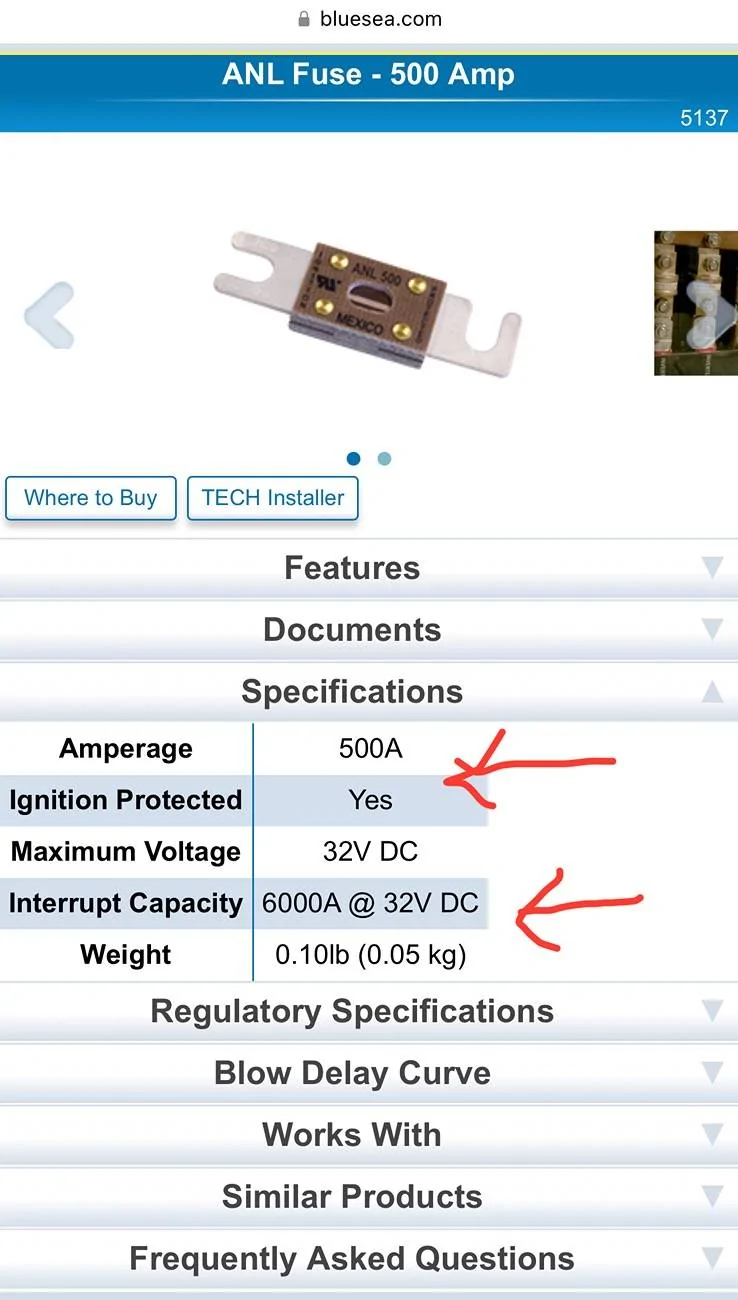

Good guess @ 6000. Assume Blue Seas is more trustworthy but haven’t researched the independent testing you mentioned.
