C135 ABS Connector Diagram

[RSNovi]

Hi,

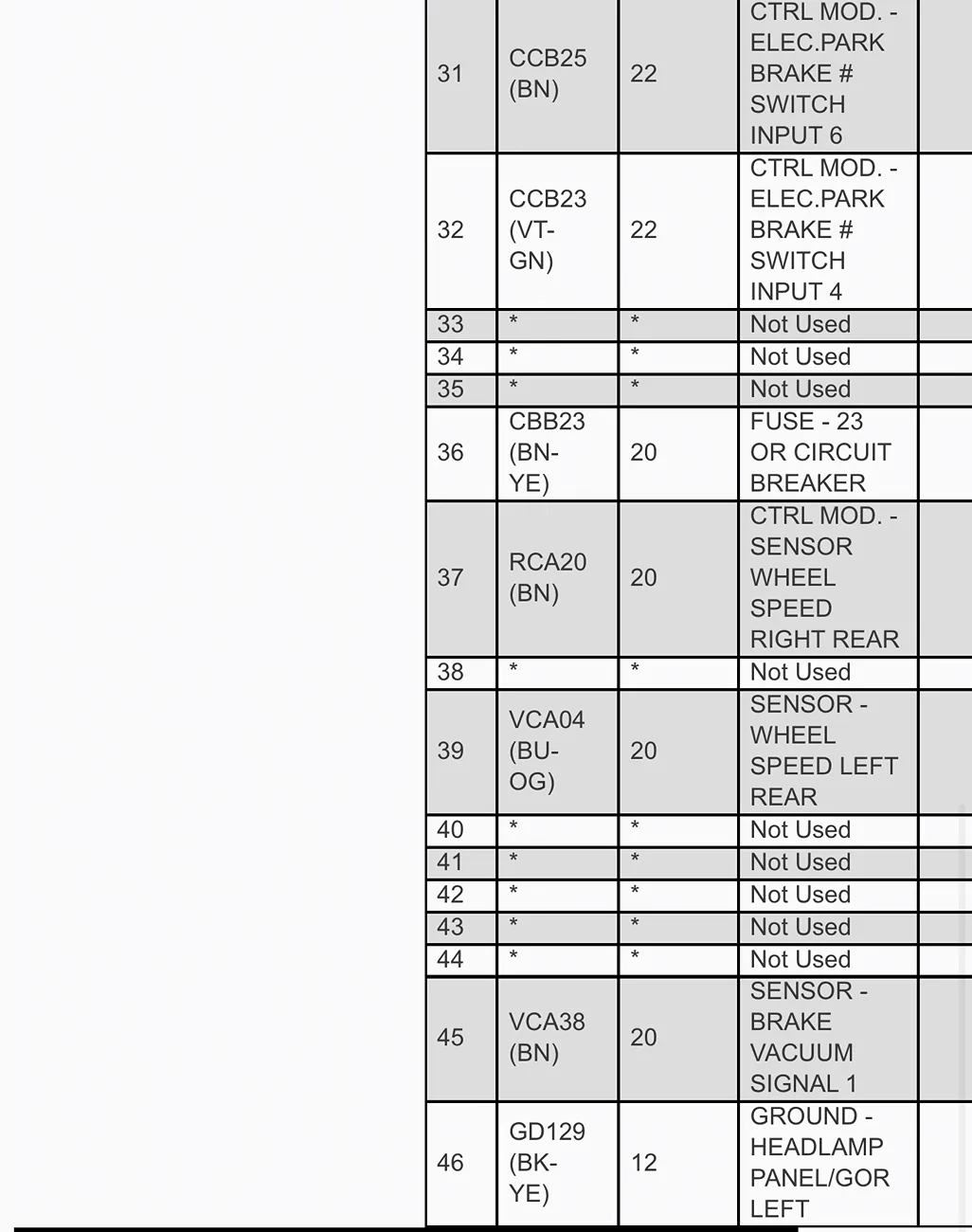

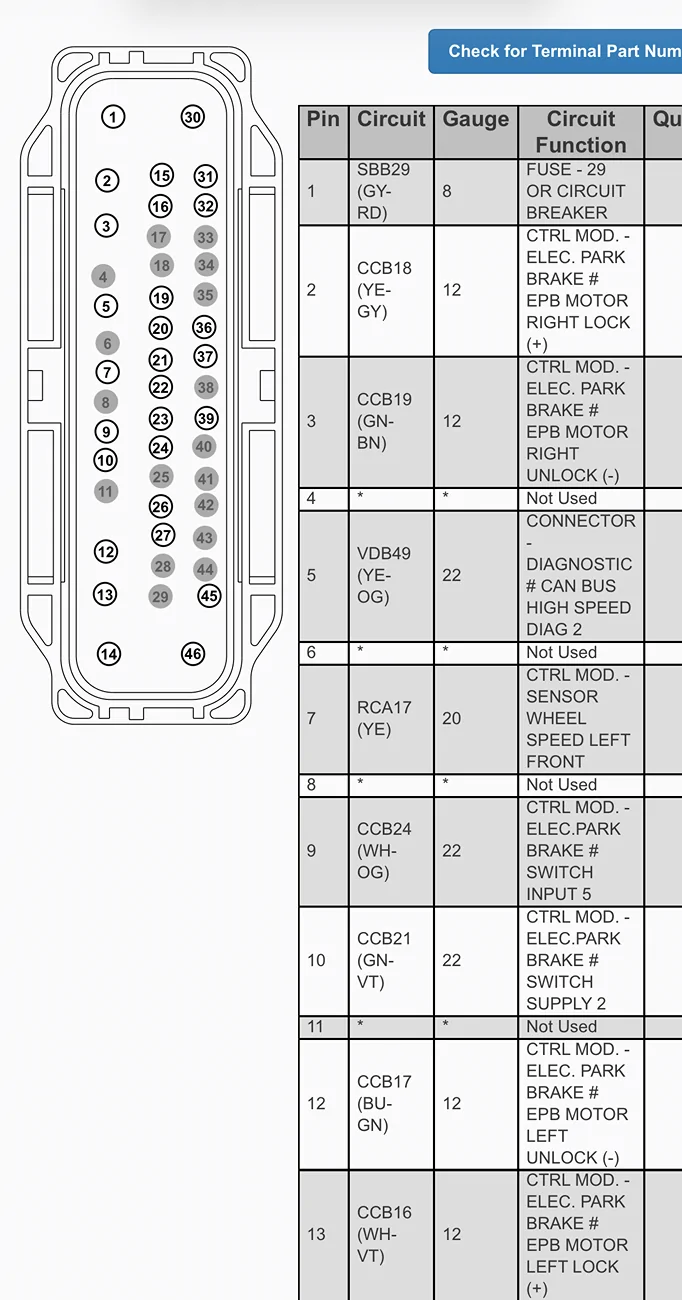

Does anyone have access to a pinout of connector C135 which is the connector to the ABS module?

I have a DTC that says right front wheel sensor is short to ground or open circuit. I replaced the sensor and same error. I think I have a broken wire. I did a continuity test from the sensor connector back to the ABS connector. Trial and error I was able to find continuity for the two left front sensor wires and only one for the right front sensor. The green/white wire seems broken, but I am not sure which pin it is. Than you.

Sponsored



[BigMeatsBronco]

@Ducati1098 might be able to help



[Ducati1098]

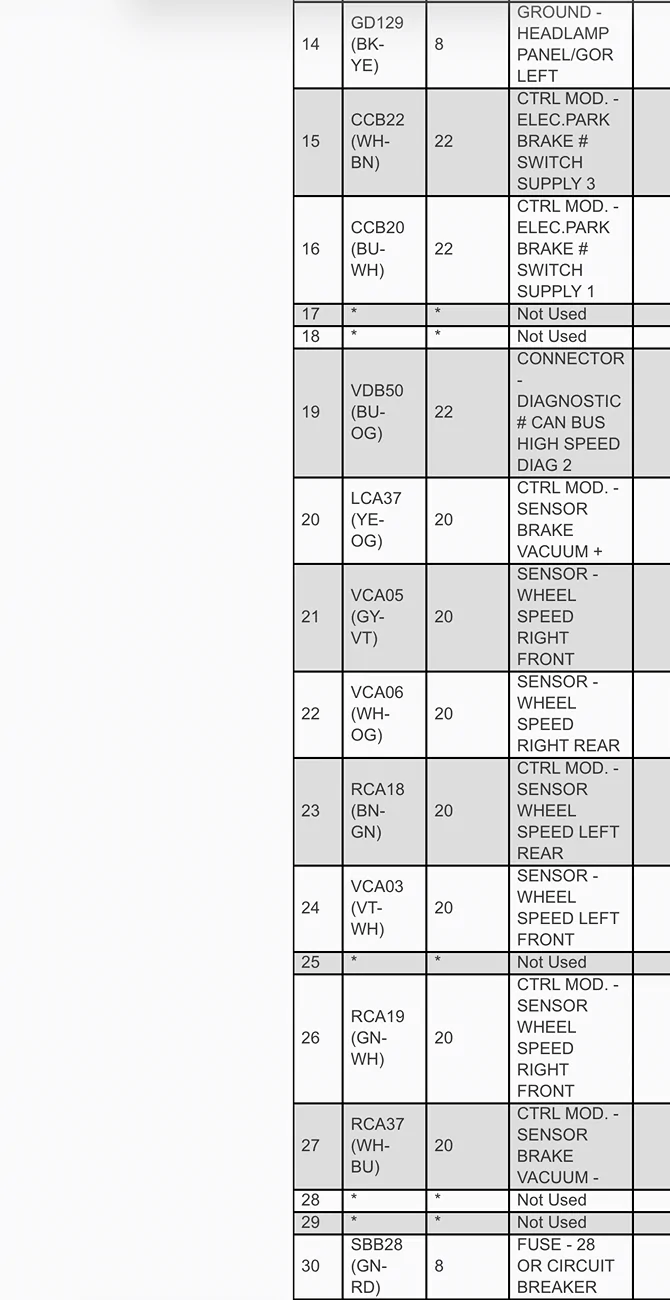

Pin 26



[RSNovi]

Pin 26

Thank you so much.



[RSNovi]

@Ducati1098

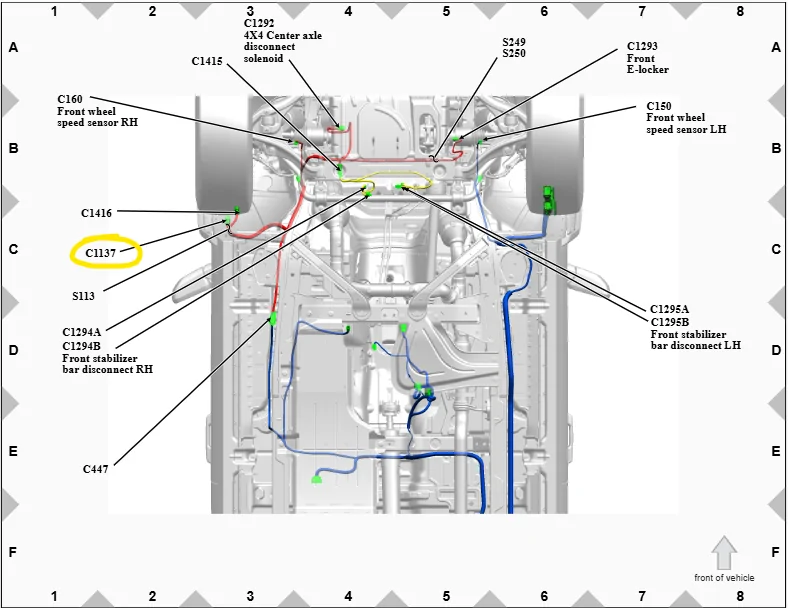

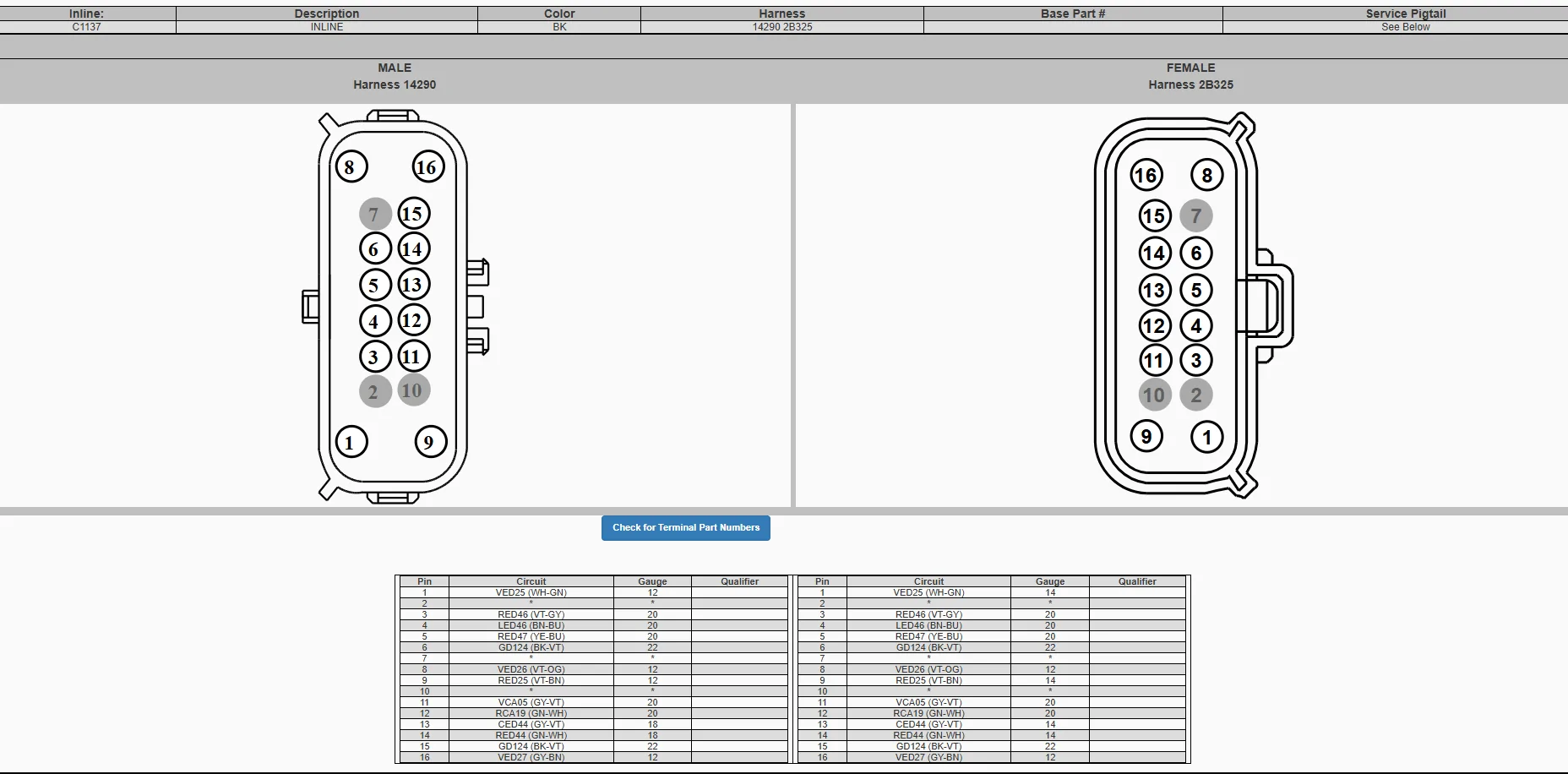

Sorry to bother you again. Would you happen to know the location of connector C1137 on the vehicle? I found some additional diagrams, and it appears to be an intermediate connector where the right front wheel speed sensor passes through. I could probe there to determine if the break is before or after that point.

It's been cold and rainy, so I haven't been able to work on it since I initially disassembled it. Hoping to have a plan for this weekend to get back to it. Thanks.



[Ducati1098]

@Ducati1098
Sorry to bother you again. Would you happen to know the location of connector C1137 on the vehicle? I found some additional diagrams, and it appears to be an intermediate connector where the right front wheel speed sensor passes through. I could probe there to determine if the break is before or after that point.

It's been cold and rainy, so I haven't been able to work on it since I initially disassembled it. Hoping to have a plan for this weekend to get back to it. Thanks.



[RSNovi]

Thank you, again!



[RSNovi]

An update. A mouse chewed through the harness after the C1137 connector. Damaged the twisted pair wires for the right front wheel speed sensor. I repaired the wires, and thought I did it well including maintaining a twist, but still have a fault for insufficient transitions. Long story here:

https://www.bronco6g.com/forum/threads/mouse-chewed-through-front-wheel-speed-sensor-wires.131615/



[RSNovi]

I was able to get this working. Turns out I had received a left wheel speed sensor and I was working on the right side.

With the correct sensor in, everything started working. My wire repair was sufficient.
