Pinion Angle How to Calculate for Dummies

[telenerd]

Howdy,

I bought an digital angle finder and looking to check my pinion angle on my 2 Door Bronco. My new upper/lower control arms were installed by a shop and I want to double check their work.

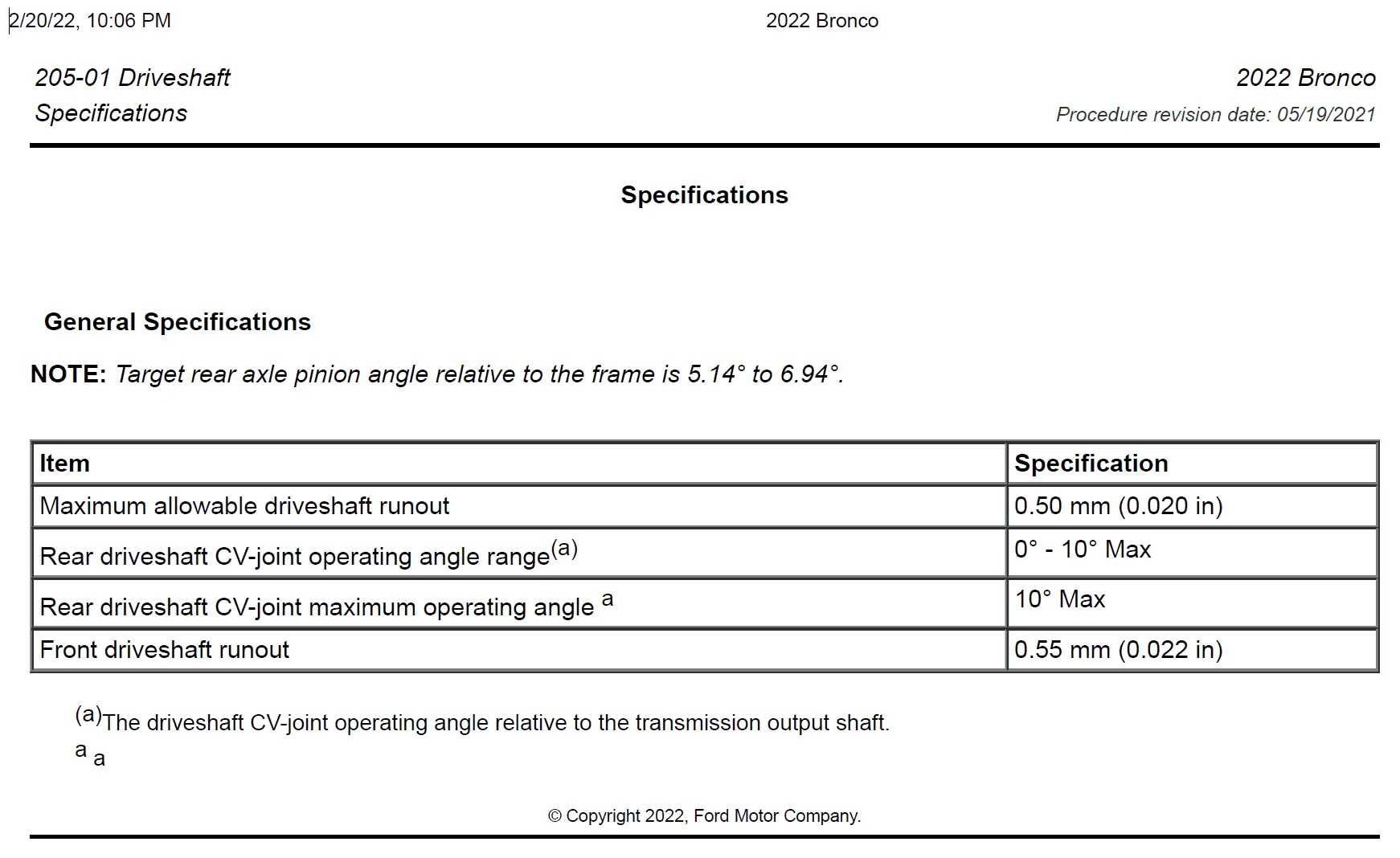

According to this chart its set between 0-10 degrees for the operating angle. There is also a note that says target rear axle pinion angle relative to the frame 5.14-6.94 degrees. So the upper arms would need to be adjusted to get the Bronco within operating specs since a lift.

Anyone want to explain how you adjust pinion angle for dummies? I searched a lot of YouTube videos and even downloaded the Tremec app. I see a lot of conflicting stories on how to adjust pinion angle after a lift or even how to simply check pinon angle.

Any tips or tricks would be appreciated!

Sponsored



[Y2KFirehawk]

Without adjustable control arms, you would need to switch to arms the length needed to achieve the appropriate pinion angle.



[telenerd]

Without adjustable control arms, you would need to switch to arms the length needed to achieve the appropriate pinion angle.

My new arms are adjustable.



[Y2KFirehawk]

In my quick Google I came across https://www.superiorengineering.com.au/pinion-angle-measurement that tells the story pretty well. It's not the angle of the drive shaft so much as the angle of the faces of the transfer case output and rear differential



[Brian_B]

pinion angle is relative to the differential output flange

0 angle would be straight out of the diff output and perpendicular to the axle when looking at it axle-on from the side. Any elevation up (or down) is your pinion angle

Adjusting the length of the upper control arm (if I got that right) rotates the pumpkin, adjusting the output flange, and hence the pinion angle



[telenerd]

Thanks for info. Here is what AI is telling me. Look correct?


To set the pinion angle on your 2-door [Ford bronco using an angle finder, you must measure the relationship between the driveshaft and the rear axle pinion while the vehicle is at its full ride height. For the 2-door Badlands, which often uses a double-cardan (CV) style driveshaft, your goal is to have the pinion pointing 1–2 degrees below the centerline of the driveshaft. [1, 2, 3, 4]
## Step-by-Step Setup with an Angle Finder

1. Prepare the Vehicle: Ensure the Bronco is on flat ground with the suspension fully loaded (all four wheels on the ground).
2. Zero Your Tool: If using a digital angle finder, many experts recommend "zeroing" it on a consistent reference point, such as the frame or the transfer case output, to measure relative differences accurately.
3. Measure the Driveshaft:
* Place your angle finder on a clean, straight section of the rear driveshaft.
* Example: If the driveshaft slopes down at 12°.
4. Measure the Pinion:
* Find a flat surface on the rear differential. A common spot is the flat machined face of the pinion yoke or a socket placed over the U-joint cup.
* Rotate the yoke so the U-joint cups are vertical (12 and 6 o'clock) to get a clean vertical or horizontal reading.
5. Calculate the Difference:
* Subtract the pinion angle from the driveshaft angle.
* Ideal Setup: If your driveshaft is 12°, you want your pinion to be 10° or 11° (pointing up toward the transfer case, but slightly lower than the shaft itself). [2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13]

## Adjusting for the Badlands
Since the 2-door Bronco uses a 5-link rear suspension, you adjust this angle by changing the length of your control arms: [14, 15]

* Adjustable Control Arms: If you have a lift, you likely need adjustable rear upper or lower control arms. Adjusting the length of the upper arms is the most common way to "roll" the axle housing and change the pinion tip.
* Factory Spec Reference: On the 6th-gen Bronco, the target rear axle pinion angle relative to the frame is approximately 5.14° to 6.94°.
* Operating Angle: Aim for a U-joint operating angle (the difference between the shaft and the pinion) of 3 degrees or less to prevent vibration and premature wear. [8, 10, 15, 16]

For high-precision measuring, digital tools like those available at Amazon or specialized apps like the TREMEC Tool Kit can help calculate these differences automatically. [10, 16]
Are you adjusting the angle to fix a specific driveline vibration, or did you recently install a lift kit?

[1] [https://www.youtube.com](https://www.youtube.com/watch?v=JDallUlArZw)
[2] [https://www.youtube.com](https://www.youtube.com/watch?v=IJQWk3Xcdzo&t=17)
[3] [https://classicbroncos.com](https://classicbroncos.com/forums/threads/setting-pinion-angle.265190/)
[4] [https://classicbroncos.com](https://classicbroncos.com/forums/threads/pinion-angle.251929/)
[5] [https://naxja.org](https://naxja.org/threads/where-do-you-put-the-angle-finder-when-setting-your-pinion-angle.1053772/)
[6] [https://www.youtube.com](https://www.youtube.com/watch?v=JDallUlArZw)
[7] [https://www.youtube.com](https://www.youtube.com/watch?v=IJQWk3Xcdzo&t=17)
[8] [https://www.youtube.com](https://www.youtube.com/watch?v=JDallUlArZw)
[9] [https://www.facebook.com](https://www.facebook.com/groups/2204688248/posts/10162484137253249/)
[10] [https://www.youtube.com](https://www.youtube.com/watch?v=SDjBHT5-u_4)
[11] [https://classicbroncos.com](https://classicbroncos.com/forums/threads/pinion-angle.251929/)
[12] [https://classicbroncos.com](https://classicbroncos.com/forums/threads/setting-pinion-angle.265190/)
[13] [https://naxja.org](https://naxja.org/threads/where-do-you-put-the-angle-finder-when-setting-your-pinion-angle.1053772/)
[14] [https://www.youtube.com](https://www.youtube.com/watch?v=uvvqVbuvDc8&t=49)
[15] [https://www.facebook.com](https://www.facebook.com/groups/2204688248/posts/10162484137253249/)
[16] [https://www.bronco6g.com](https://www.bronco6g.com/forum/threads/pinion-angle-how-to-calculate-for-dummies.132686/)



[telenerd]

Found this video. Applies to a TJ but similar concept using an angle finder. Everything I read you want the pinion 1-3 degrees negative from drive line. Anyone disagree or is that incorrect?



[Brian_B]

I’m no expert but I would say you want it so:

a) At natural ride height, the angle at both the diff and t-case is as low as you can get for both

and

b) the angle doesn’t exceed the maximum allowed for the CV or u-joint when the suspension strokes from full stuff to full droop

I doubt you get it lined up so the angle is 0 at both the diff and t-case at the same time (which is what would be optimal I think), so I bet that small degree number is just what is typical for splitting the difference to minimize it at both ends



[White Zombie]

This video is a good explanation. I have always been told that with the double cardan joint to point the diff straight to the t case which is similar to the video but the 1° negative makes sense.

Found this video. Applies to a TJ but similar concept using an angle finder. Everything I read you want the pinion 1-3 degrees negative from drive line. Anyone disagree or is that incorrect?



[telenerd]

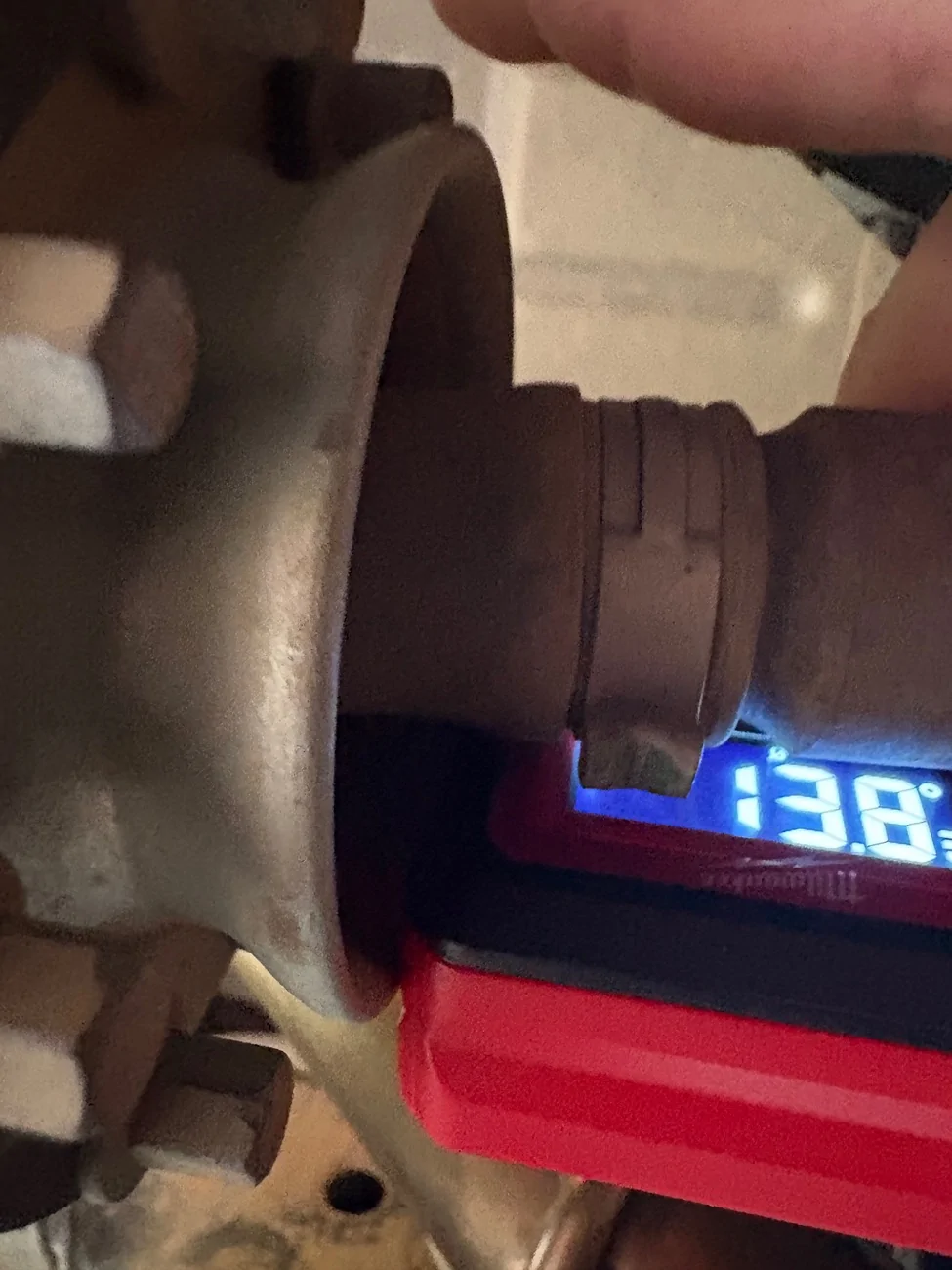

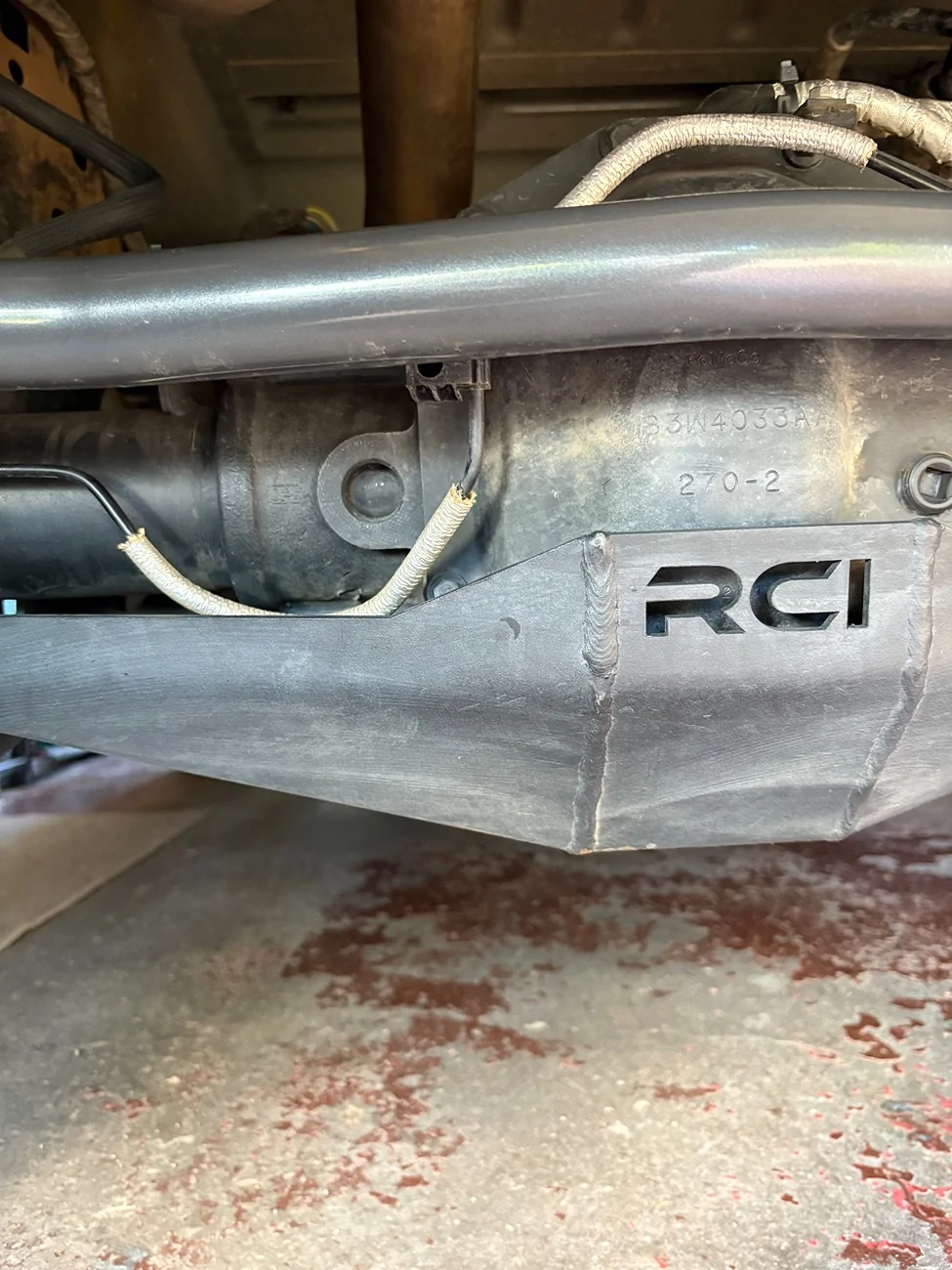

Okay guys well I learned a few things along the way. I reached out to an auto instructor. He said find a flat spot (looks like a circle) on the differential then place the angle finder on the flat spot and zero it out. Once the gauge reads zero then go to the pinion and measure that. I was at around 13.8 degrees and had to shorten my upper control arms to move the differential down. I was off by about two turns on my upper control arms. Now I’m about 9.5 degrees for the pinion. Which is well within spec for Ford. Ford also recommend checking relative to the frame. So I placed my angle finder on my frame and zeroed it out. Then measured my pinion. I was at about 6 degree relative to the frame. Well within spec according to the Ford chart.



[SierraBronco]

Adams’sss’ses driveshaft has a handy lil app that will walk you through it.

“Optimum Angle”

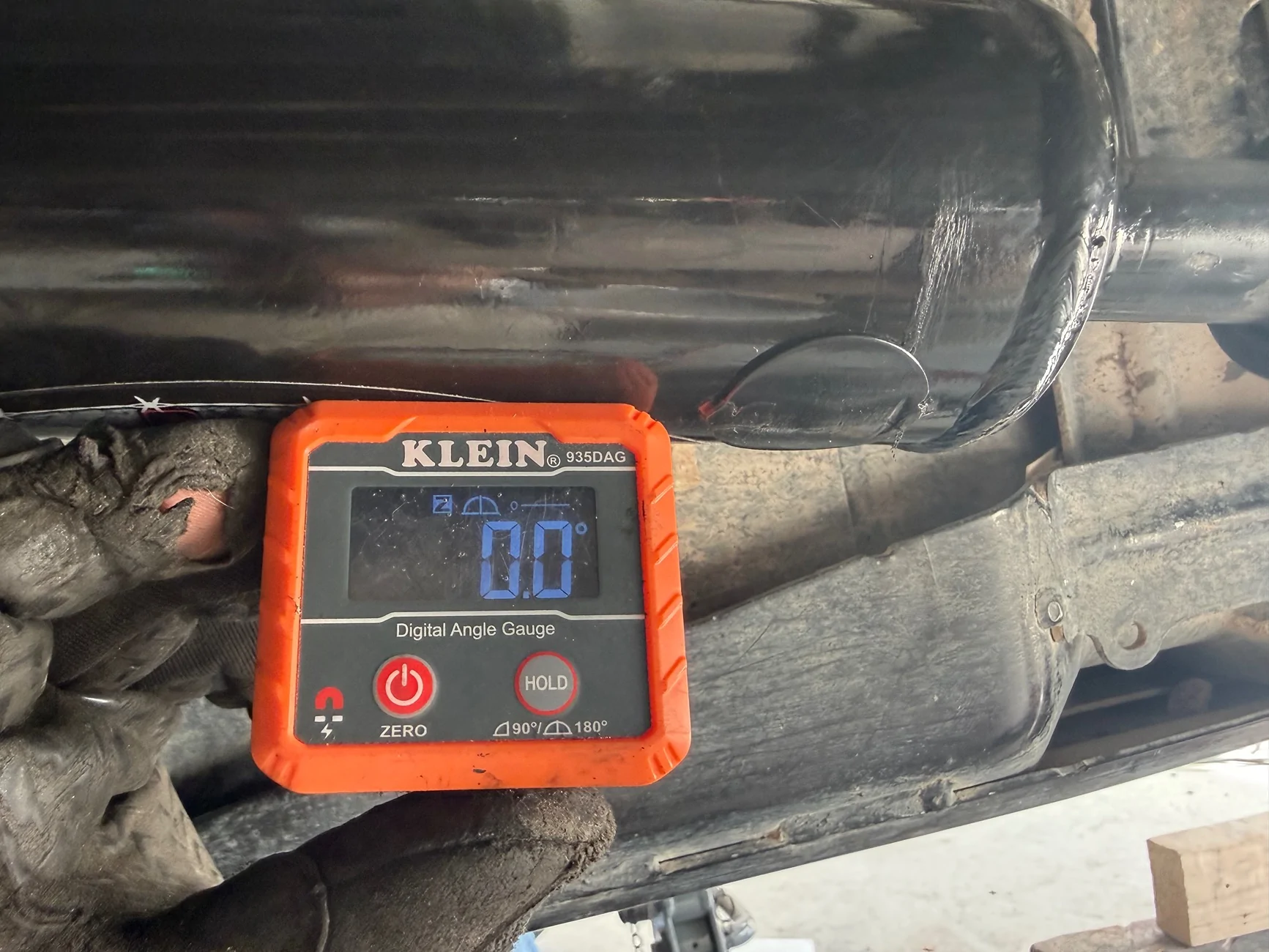

But again, sometimes I’m too lazy to reach all the way up there. So I zero the angle finder against the driveline (installed, coils removed and shocks set for ride height) then adjust the links appropriately being mindful of thread engagement in the arms. Typically you’ll want that (up to) 1 degree to keep the cups lubricated but in our case I decided “ya know, this isn’t unique enough. I should make it even more challenging to source parts that all must be custom made” and offset the diff to the driver side by one inch. That lubricates the cups, and the pinion and driveline are set up to match.

Allegedly Ford also offset the diff to the driver side. I didn’t verify this information but I will pass it along as truff.



[telenerd]

Adams’sss’ses driveshaft has a handy lil app that will walk you through it.

“Optimum Angle”

But again, sometimes I’m too lazy to reach all the way up there. So I zero the angle finder against the driveline (installed, coils removed and shocks set for ride height) then adjust the links appropriately being mindful of thread engagement in the arms. Typically you’ll want that (up to) 1 degree to keep the cups lubricated but in our case I decided “ya know, this isn’t unique enough. I should make it even more challenging to source parts that all must be custom made” and offset the diff to the driver side by one inch. That lubricates the cups, and the pinion and driveline are set up to match.

Allegedly Ford also offset the diff to the driver side. I didn’t verify this information but I will pass it along as truff.

Quick question. So you zero out your angle finder on the drive shaft, then place the angle finder on the rear diff pinion to see difference? So the difference you’re looking for is 1 or so degrees? I’d imagine your measurement is different because your running a double cardan driveshaft vs the stock cv driveshaft.



[SierraBronco]

Quick question. So you zero out your angle finder on the drive shaft, then place the angle finder on the rear diff pinion to see difference? So the difference you’re looking for is 1 or so degrees? I’d imagine your measurement is different because your running a double cardan driveshaft vs the stock cv driveshaft.

Yeah for both of ours with true double cardan drivelines we shoot for zero degrees difference. Pinion pointing straight at the tcase. But that’s okay because of the left to right offset being off enough to keep the ujoint lubricated. Typical setup would be pinion shooting for slightly over the driveline, not exceeding 1 degree, according to Adams Driveshaft. (Pointing above driveline does not apply to leaf spring aficionados.)



[telenerd]

So if anyone is curious I measured the pinon angle on a stock Stroppe and stock Badlands Sas 2 door at my local dealer. I zeroed out my angle finder on the flat spot on the front of the diff then measured the angle of the Pinion. The Stroppe was around 8.6 and the Badlands Sas was 9. So results are repeatable using the method an instructor taught me! My guess is the 4 door will give you different results so I would only use this for 2 doors with the stock drive shaft.

Learned a lot with this little experiment. Now I know how to verify my pinion angle and what shortening vs lengthing the upper control arms does and how lift affects drive angles. Surprised my Bilstein 6112 lift didn’t really deviate too much from the stock arms on length for my Synergy Control arms, even though I’m on clip 5 for the shocks. The arms are slightly longer on the uppers and the lowers I had to lengthen a few turns to center axle in wheel well. The most adjustments I made was probably the rear track bar to center the axle and correct thrust angle. My alignment on my Thrust angle is 0.01 which is dam near perfect!



[SierraBronco]

So if anyone is curious I measured the pinon angle on a stock Stroppe and stock Badlands Sas 2 door at my local dealer. I zeroed out my angle finder on the flat spot on the front of the diff then measured the angle of the Pinion. The Stroppe was around 8.6 and the Badlands Sas was 9. So results are repeatable using the method an instructor taught me! My guess is the 4 door will give you different results so I would only use this for 2 doors with the stock drive shaft.

Learned a lot with this little experiment. Now I know how to verify my pinion angle and what shortening vs lengthing the upper control arms does and how lift affects drive angles. Surprised my Bilstein 6112 lift didn’t really deviate too much from the stock arms on length for my Synergy Control arms, even though I’m on clip 5 for the shocks. The arms are slightly longer on the uppers and the lowers I had to lengthen a few turns to center axle in wheel well. The most adjustments I made was probably the rear track bar to center the axle and correct thrust angle. My alignment on my Thrust angle is 0.01 which is dam near perfect!

Hell yeah man! Next up you’ll be not just centering the axle, but accounting for axle steer when fully articulated, bump stops, and fender clearance while maintaining pinion angle at ride height. Took us a couple days to get it all sorted. First video is full stuff and I think centered, then drooping the passenger side as much as the garage floor would allow. Second video is final with the other side fully drooped. There are certainly ways to use like…math and stuff…that would expedite the process but we had to resort to adjusting and testing.
