AK Snows 2021 Bronco First Edition Build Thread

[AK SNO RIDER]

I've been meaning to do this for a while but just never got around to it. Better late than never? This has been a long process and I figured I'd wait till I was "done" to post anything...22k miles later here we go.

Underneath -

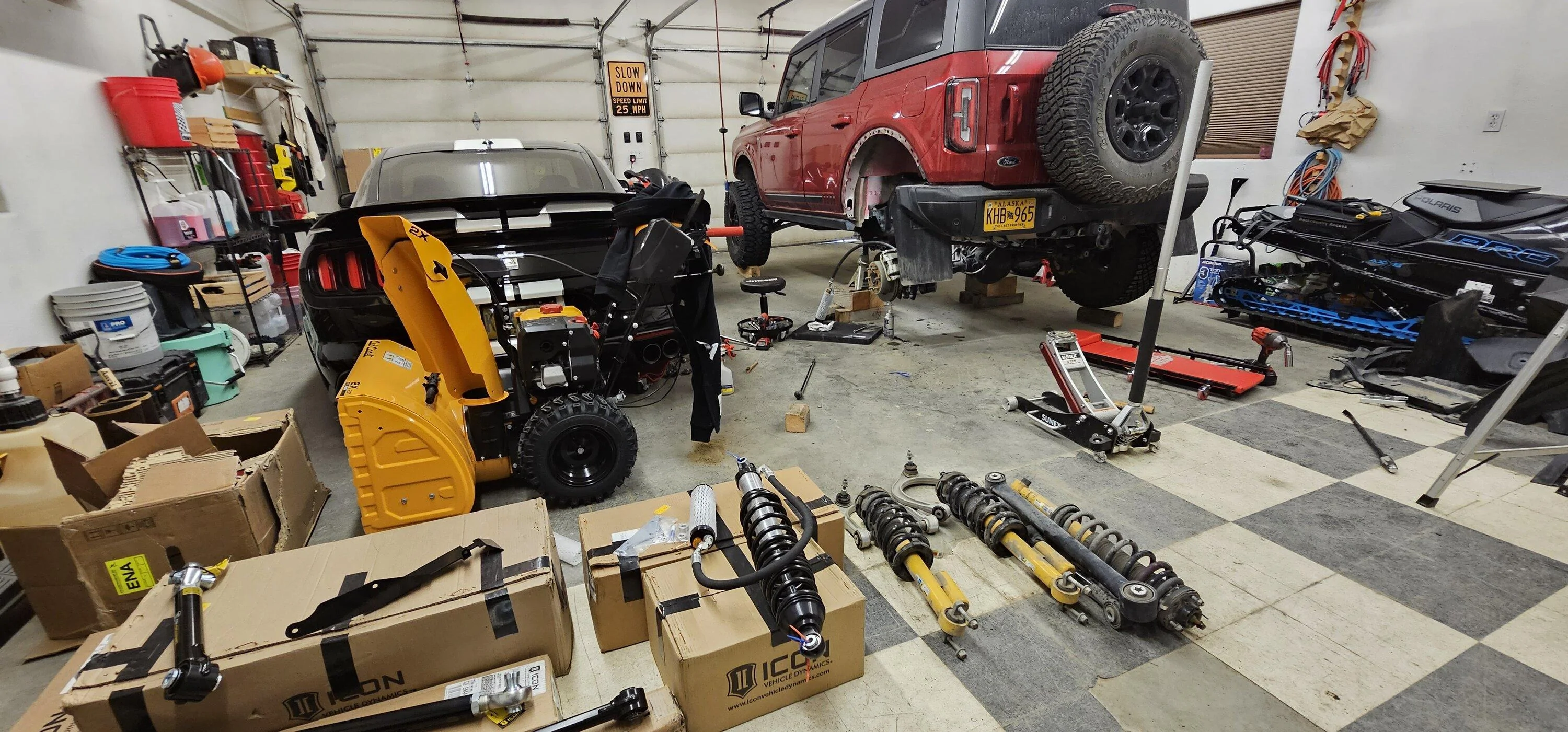

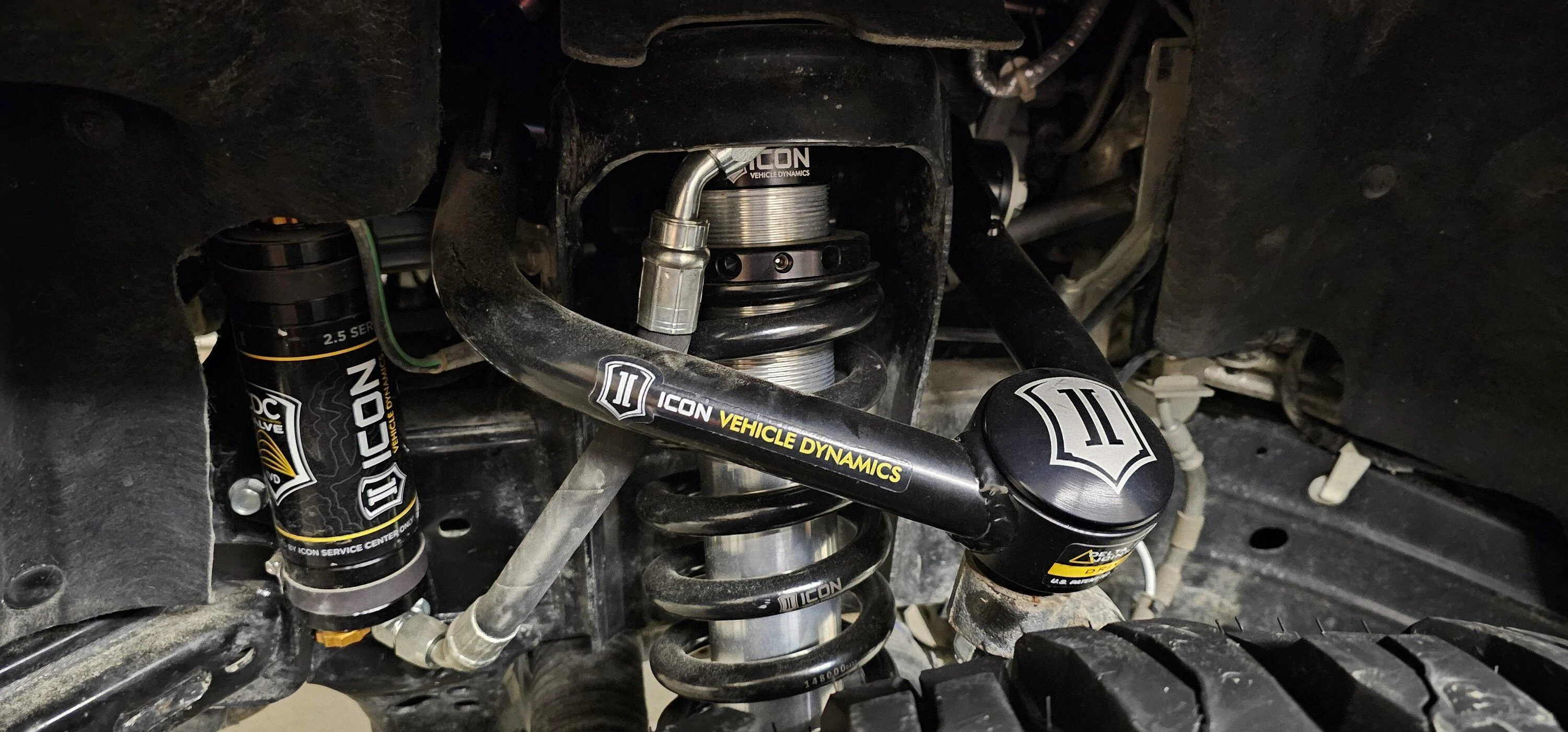

Icon stage 7 (tubular)

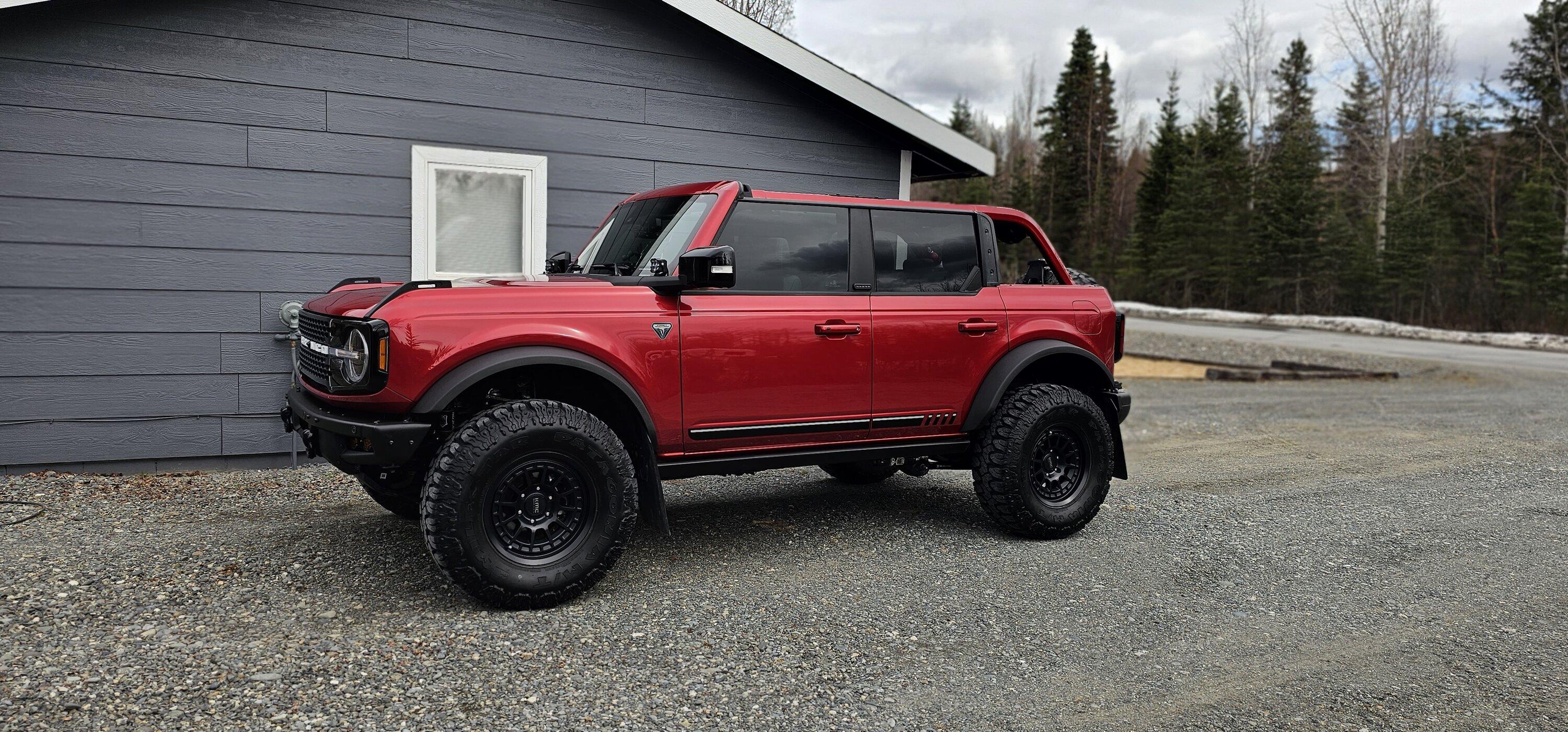

KMC Canyon wheels - 0 offset - Wrapped in 35" Patagonia MTs

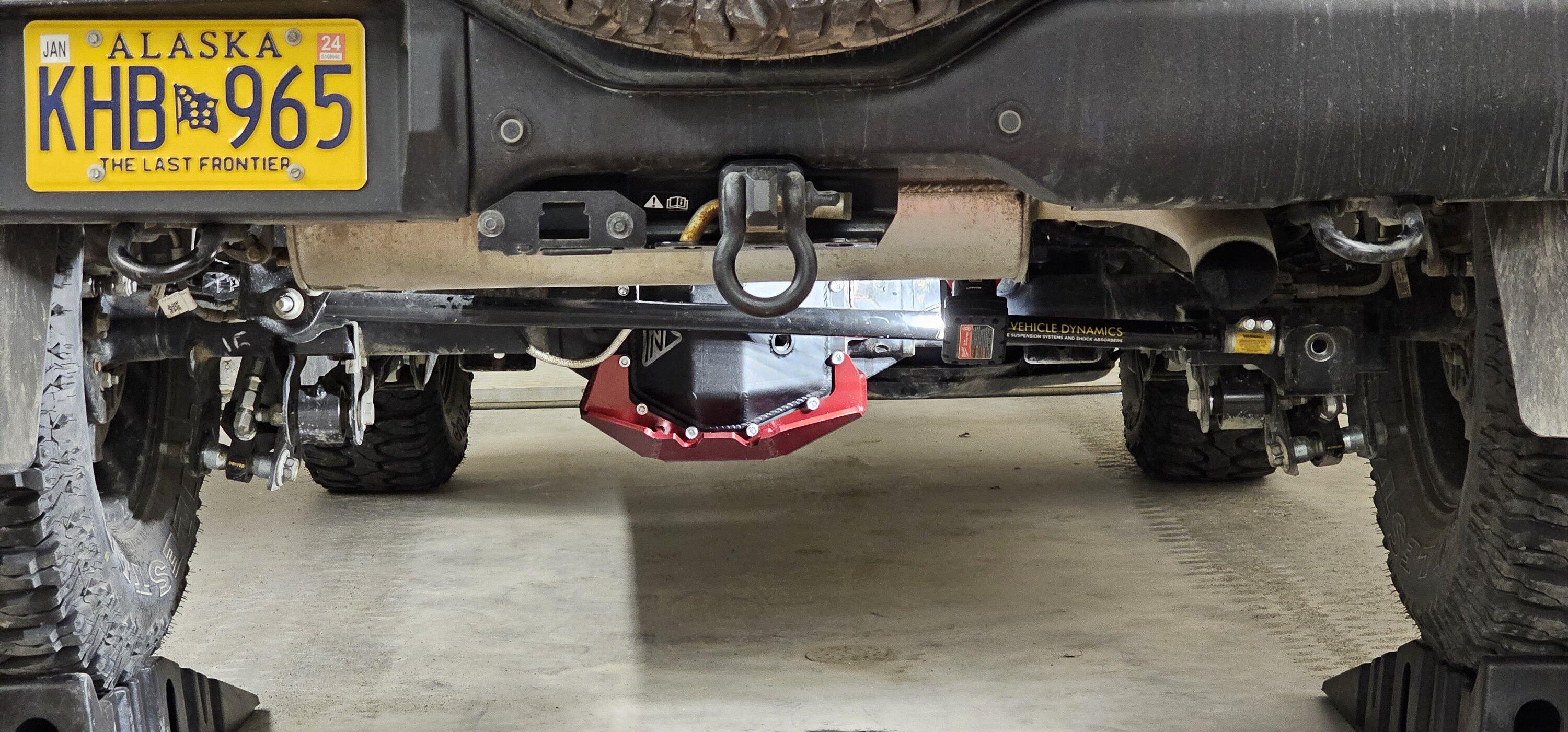

Next Venture shock and diff skids
Next Venture diff cover
Ronin oil drain valve
ARB twin on KR Offroad under hood mount and remote ARB air chuck on the front bumper

Exterior -

CBI Baja Hybrid bumper
Badland Apex 12k winch
2x Morimoto BigBangers, 6x 4Bangers, 2x 2Bangers, and a pair of 1Bangers out back

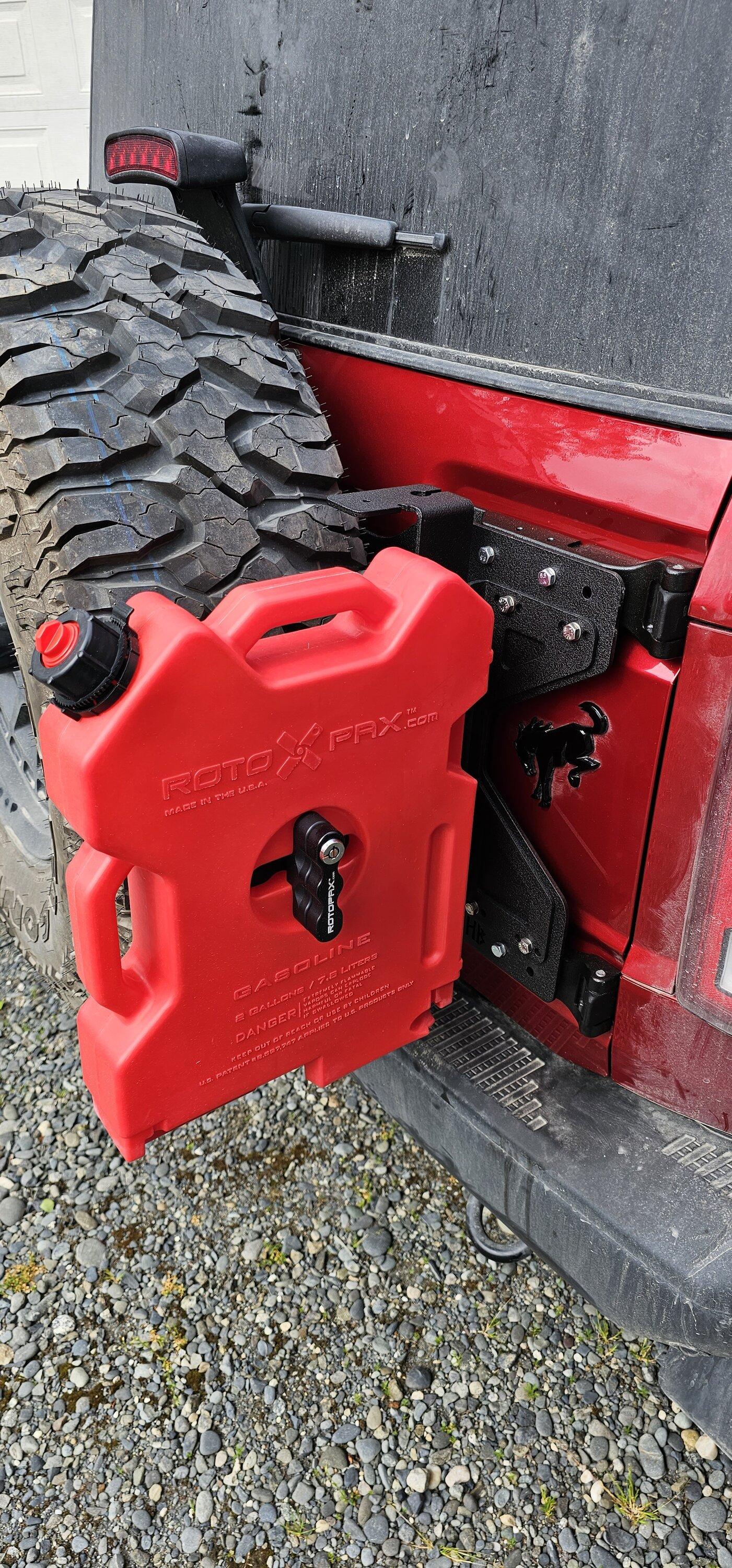

Raptor hinges, Hammer Built HD tailgate reinforcement, accessory arm and antenna mount w/ a 2gal Rotopax
RCI roof rack

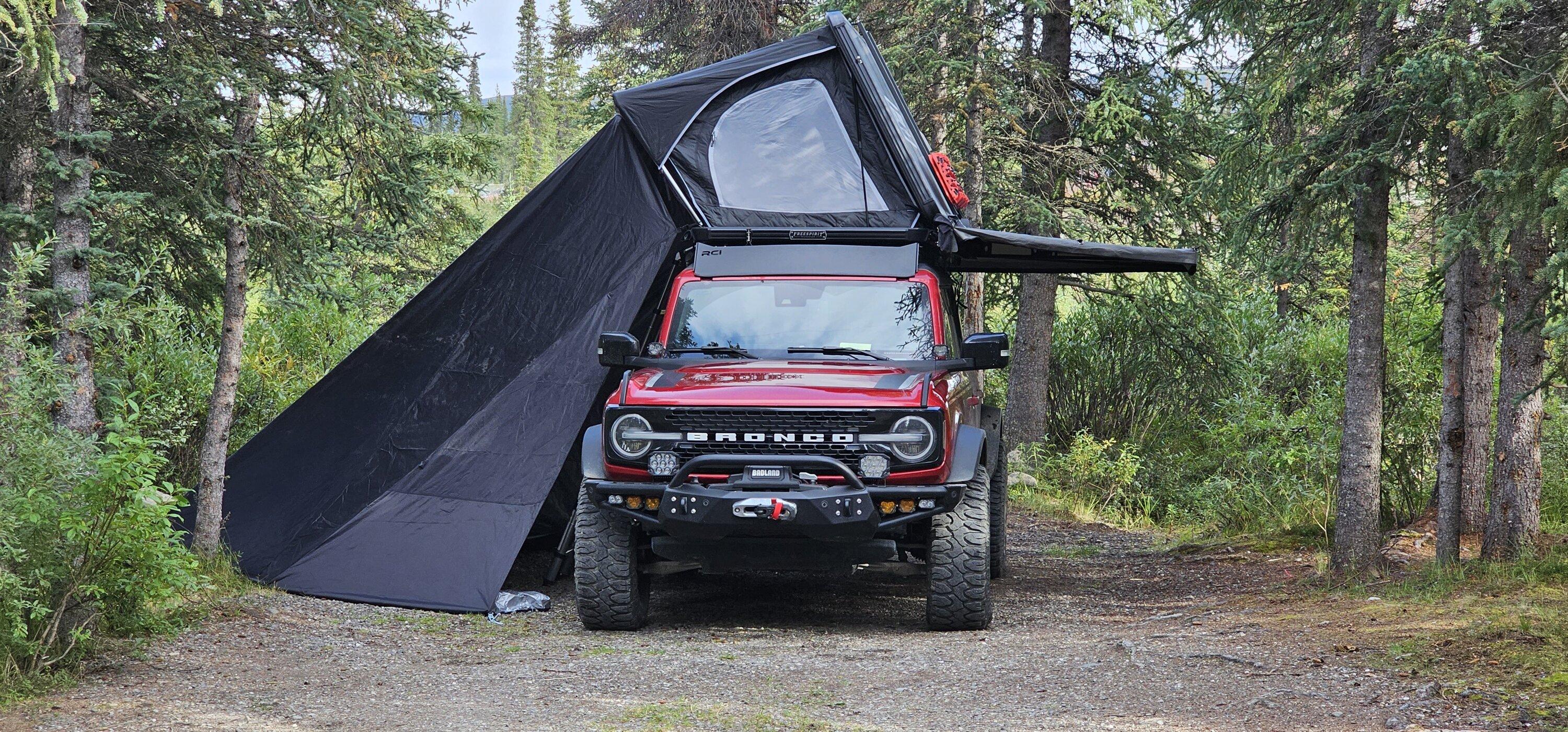

FSR 49" Odyssey w/ crossbars and ARB traction boards

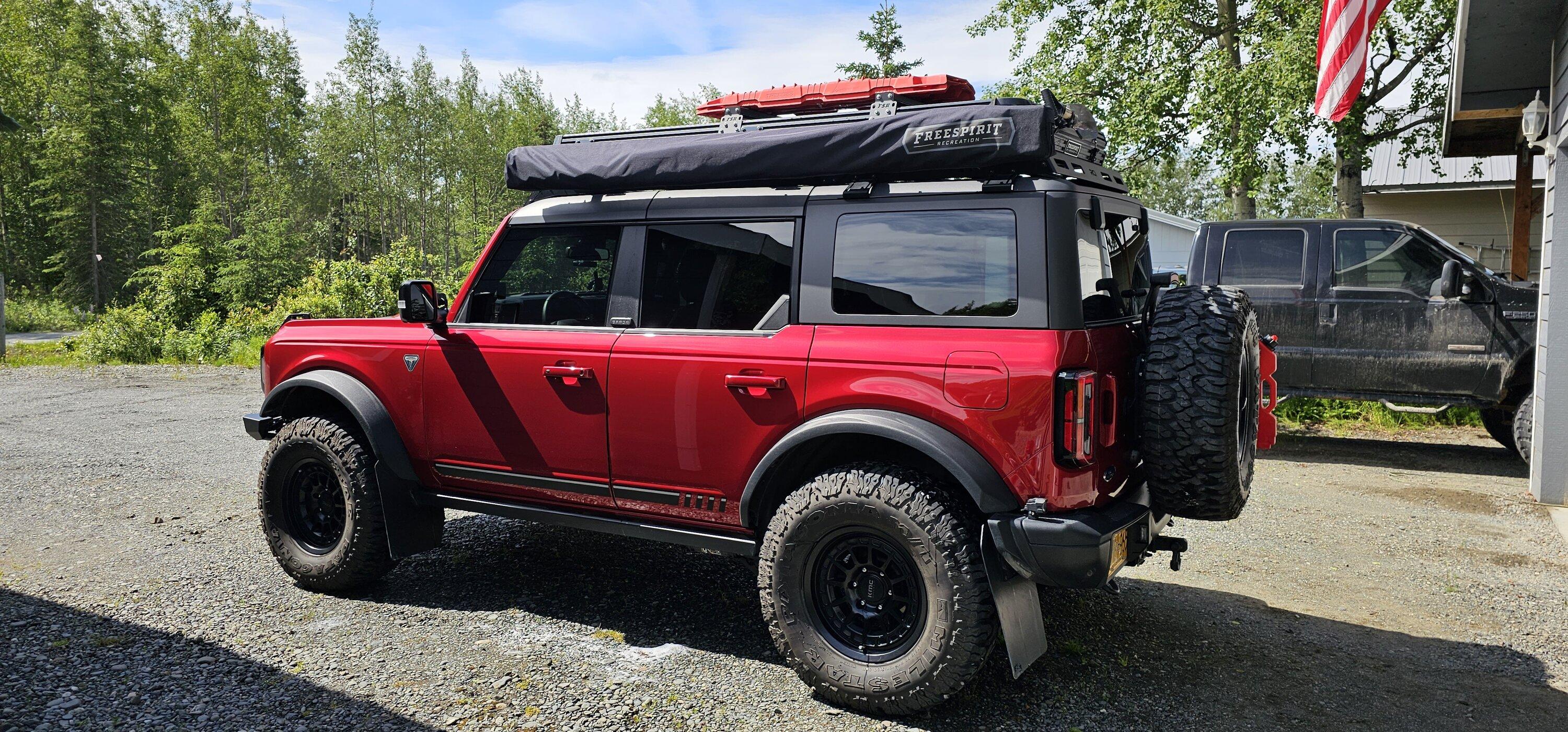

FSR Odyssey multifunction awning

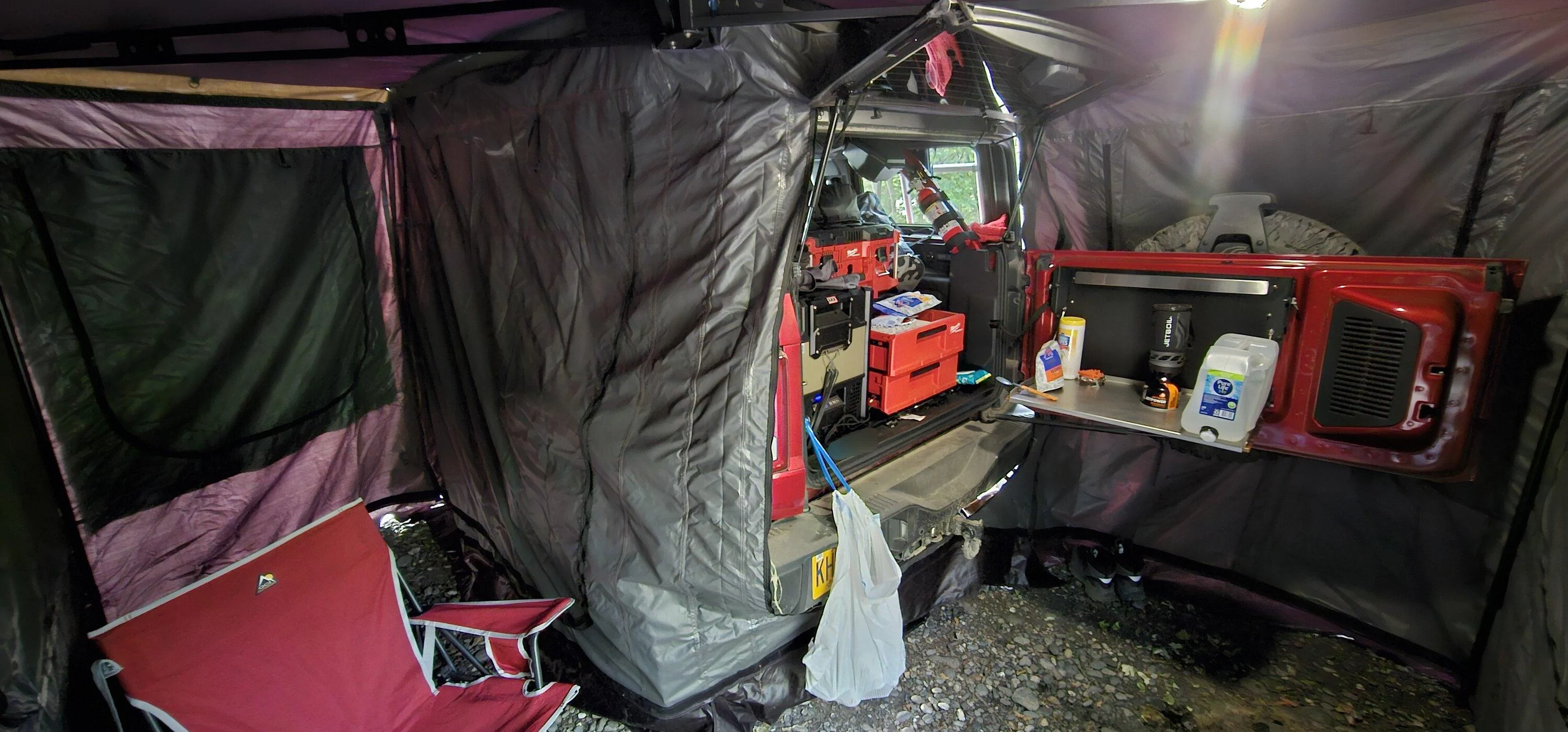

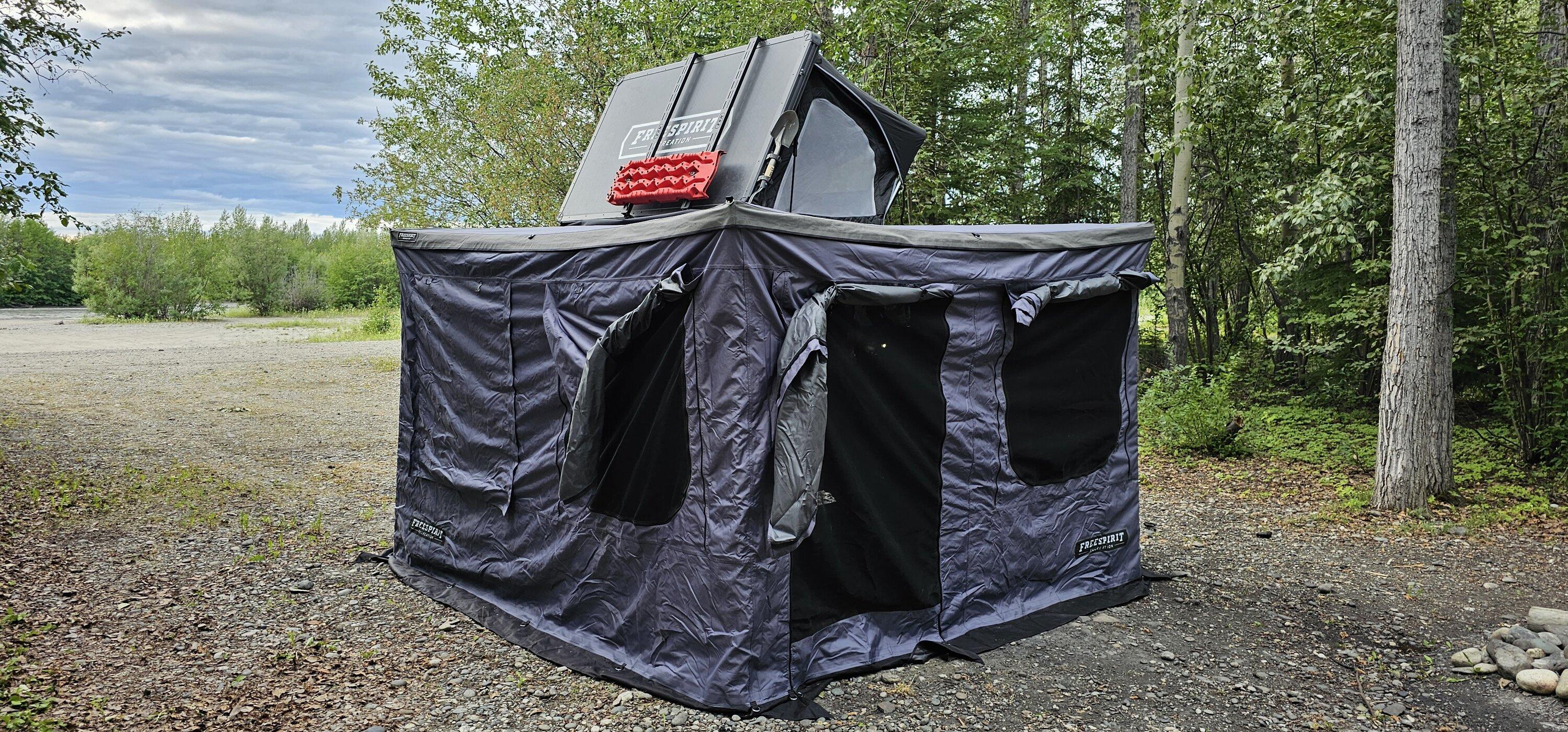

FSR 270° awning w/ awning room
Rokblokz XL flaps
Fully wrapped in Xpel Ultimate


Interior -

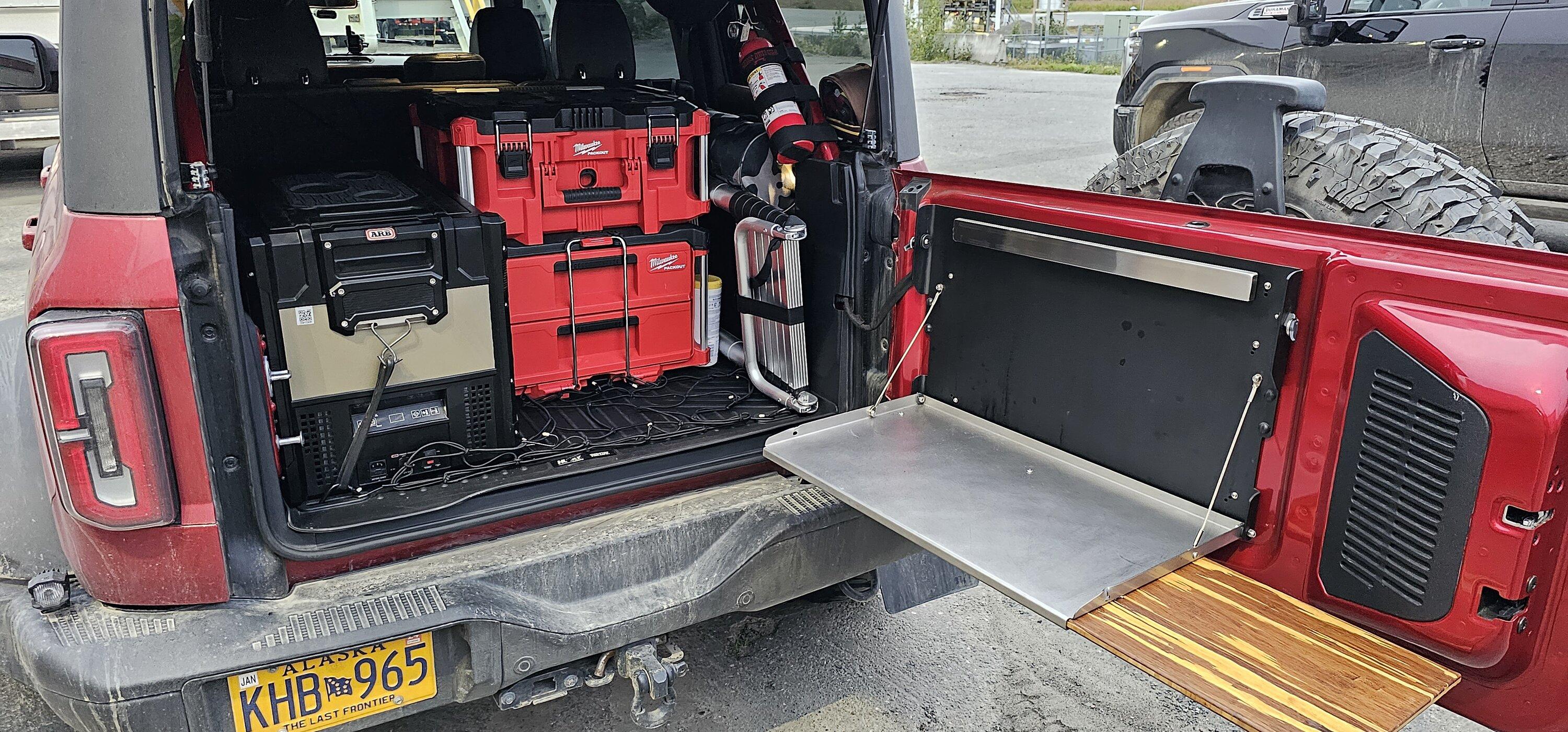

Trailgator tailgate table
ARB 47l fridge powered by a Goal Zero Yeti 1000
Archetype BYOD rail and serialized console plaque
Inreach Mini 2 on the rail using a Garmin spine mount, short Ram arm, and Archetype B.A.L.L.

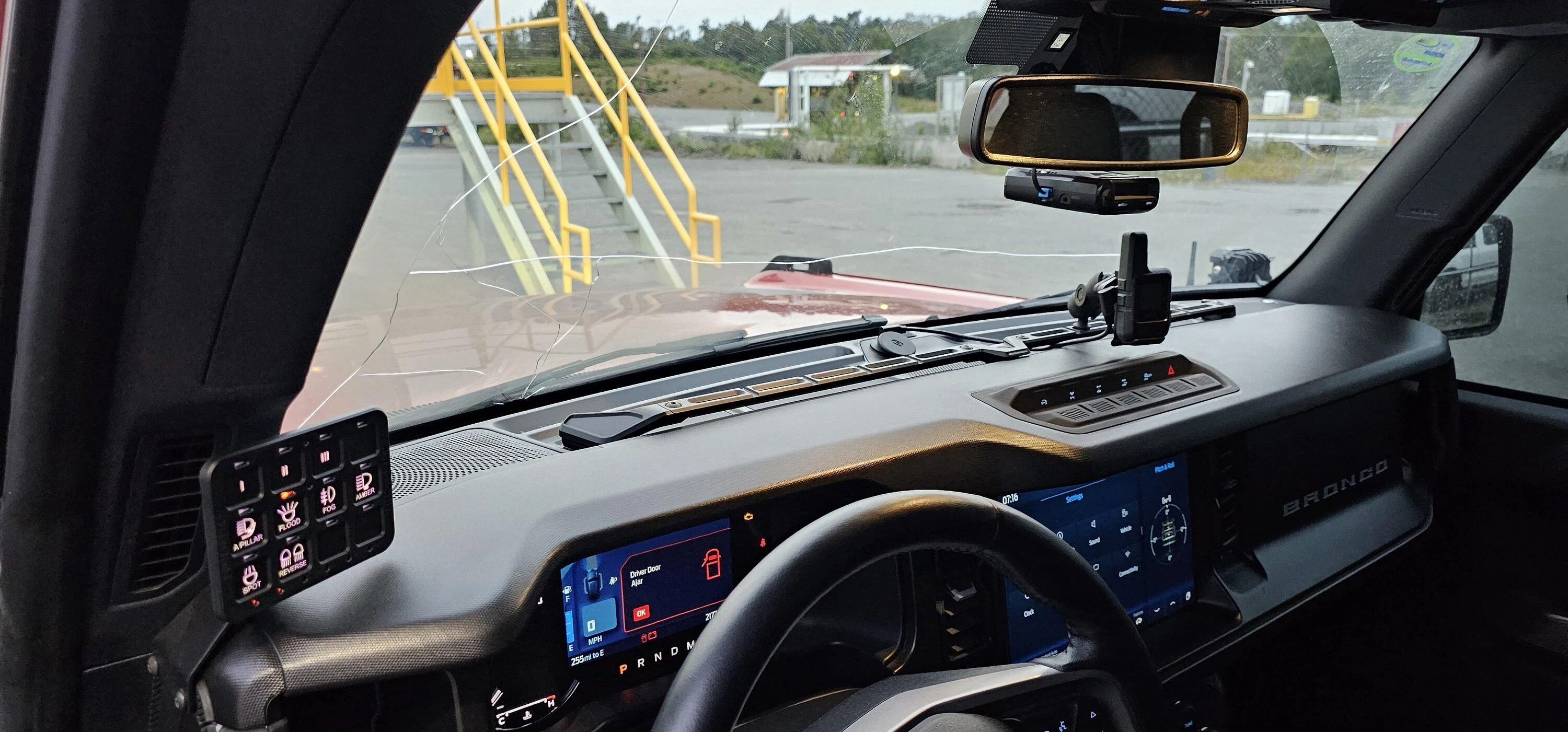

Switchpros RCR Force-12
Husky Liners
Uniden R3
Badass Moto rollbar extinguisher mount
Milwaukee Packouts as a poor man's cargo system
20% Xpel tint on the front windows

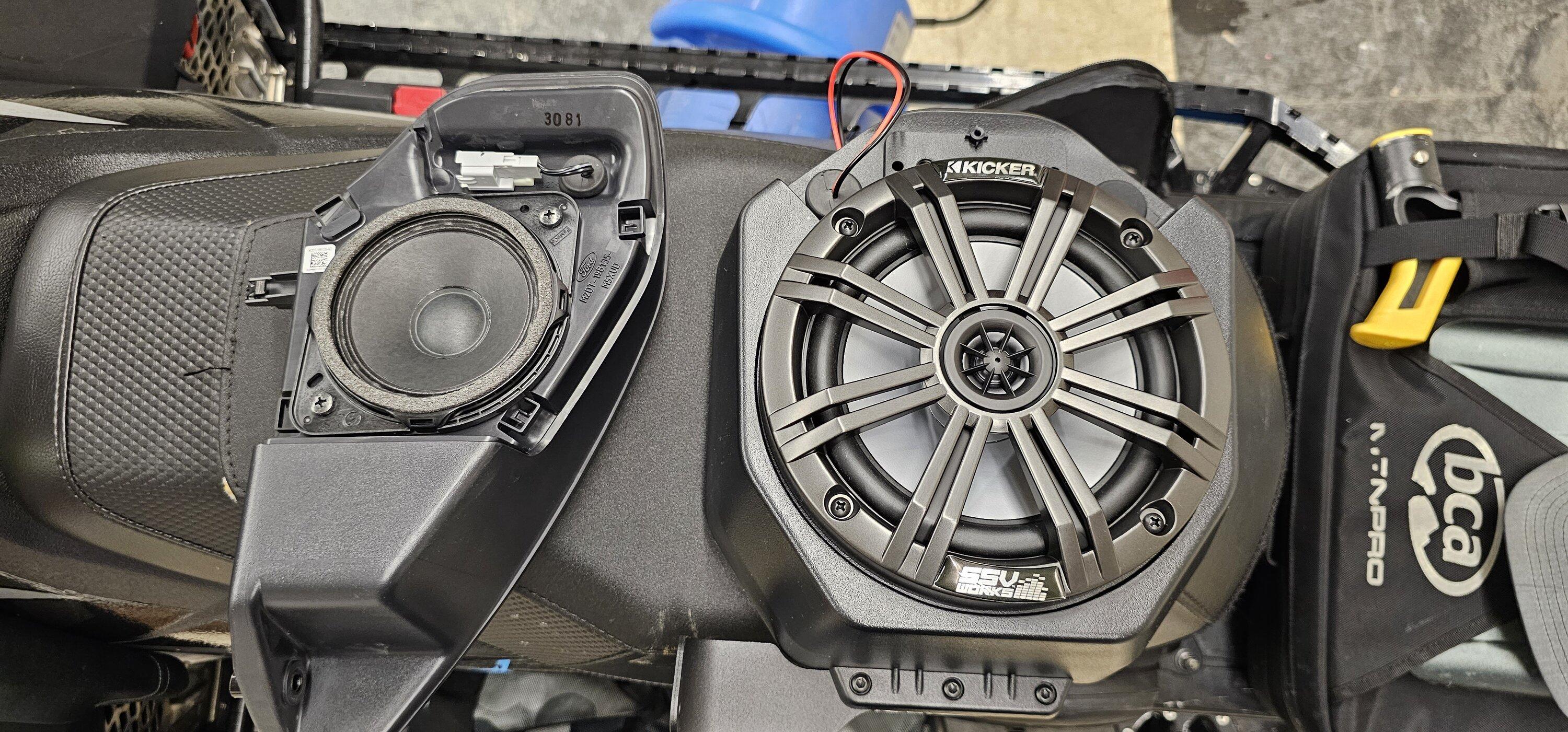

SSV Works rear speaker pods

That's a pretty comprehensive list and probably more than most people care about so let's get to the photos...

Sponsored



[AK SNO RIDER]

Reserved....



[RC Bronco]

Very very well thought out build! Thanks for sharing with us

Do you have any of the roof sagging issues with the RCI rack? Middle panel looks a little angled which makes me think yes?



[GoHack]

Hell, I could live in that.

What brand is the Roof Top Tent?

Any pictures of insides, including the external add on tents?



[Chrome_Pony]

Nice build, pretty sure I've seen it on the Glenn in the past couple weeks.


So you're not using the upfitter switches at all?



[AK SNO RIDER]

Very very well thought out build! Thanks for sharing with us

Do you have any of the roof sagging issues with the RCI rack? Middle panel looks a little angled which makes me think yes?

Yea very much so, it sags bad. That middle latch for the mid panel actually contacts the horizontal roll bar on bigger bumps.

Tried to order the JCR Roof reinforcements but their website wouldn't ship to AK and my email went unanswered. Keep forgetting to try them by phone.

Nice build, pretty sure I've seen it on the Glenn in the past couple weeks.


So you're not using the upfitter switches at all?

Sounds about right, probably caught me on the Glenn headed home from my last trip.

The only thing I have on an upfitter now is the ARB compressor, I moved all my lights over to the Switchpros when I installed that.



[AK SNO RIDER]

Hell, I could live in that.

What brand is the Roof Top Tent?

Any pictures of insides, including the external add on tents?

FSR, Freespirit Recreation.



[Chrome_Pony]

Yea very much so, it sags bad. That middle latch for the mid panel actually contacts the horizontal roll bar on bigger bumps.

Tried to order the JCR Roof reinforcements but their website wouldn't ship to AK and my email went unanswered. Keep forgetting to try them by phone.



Sounds about right, probably caught me on the Glenn headed home from my last trip.

The only thing I have on an upfitter now is the ARB compressor, I moved all my lights over to the Switchpros when I installed that.

Love the way the underhood unit fits in the fender recess. Do you have any hood struts installed? Looks like the plug would contact with my Redline struts.



[AK SNO RIDER]

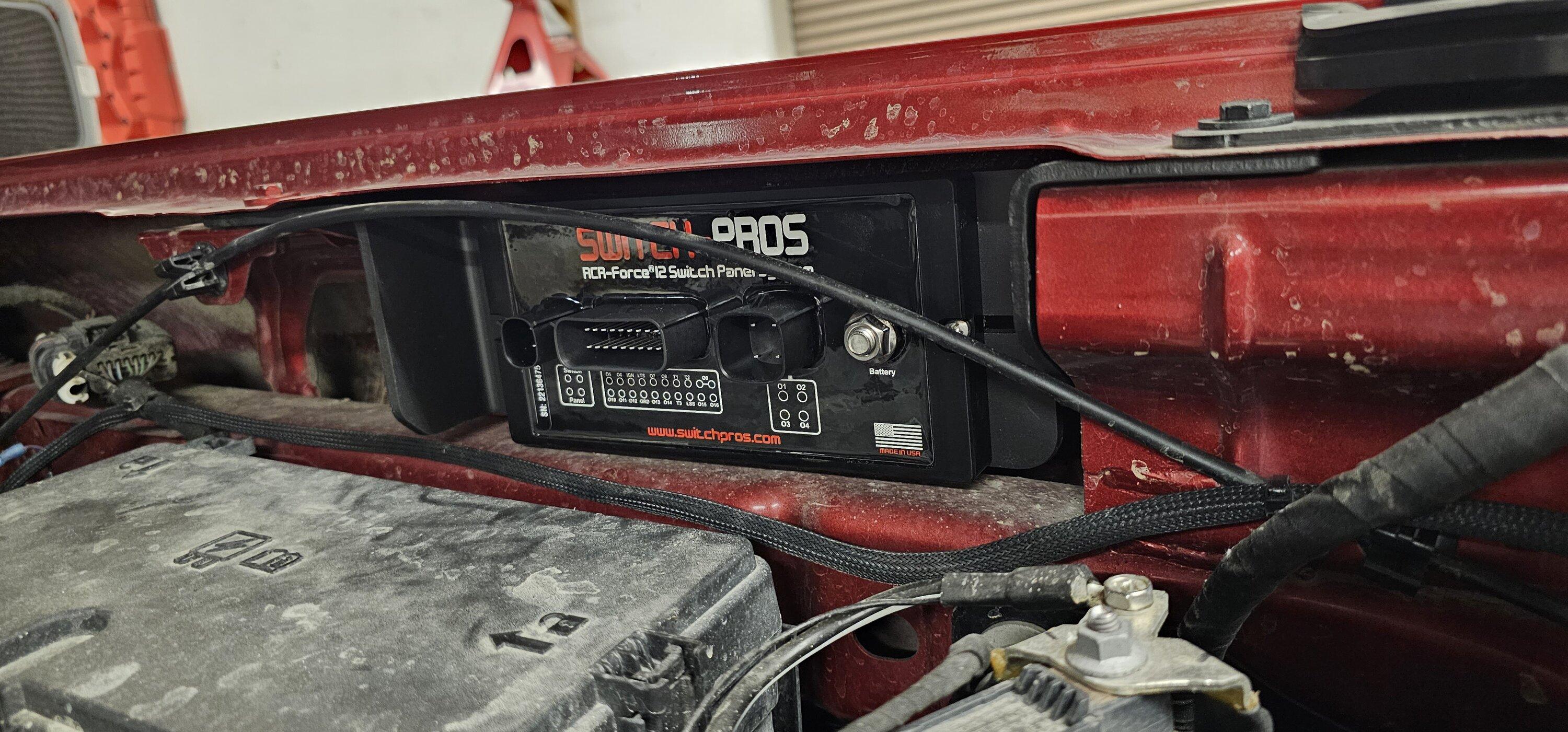

Love the way the underhood unit fits in the fender recess. Do you have any hood struts installed? Looks like the plug would contact with my Redline struts.

Nope no struts. I've gotten used to a prop rod after the last 3 Fords.

Even my GT350 has an old school prop rod ‍

The Switch Pros is awesome though, love the thing. It all fit so nicely, works great and super customizable.

There are a LOT of wires there when the harnesses are plugged in.



[Chrome_Pony]

I get it. I run a Feniex 4200 Mini on my Colorado, and it was a ton of wiring. Def not for the faint of heart.

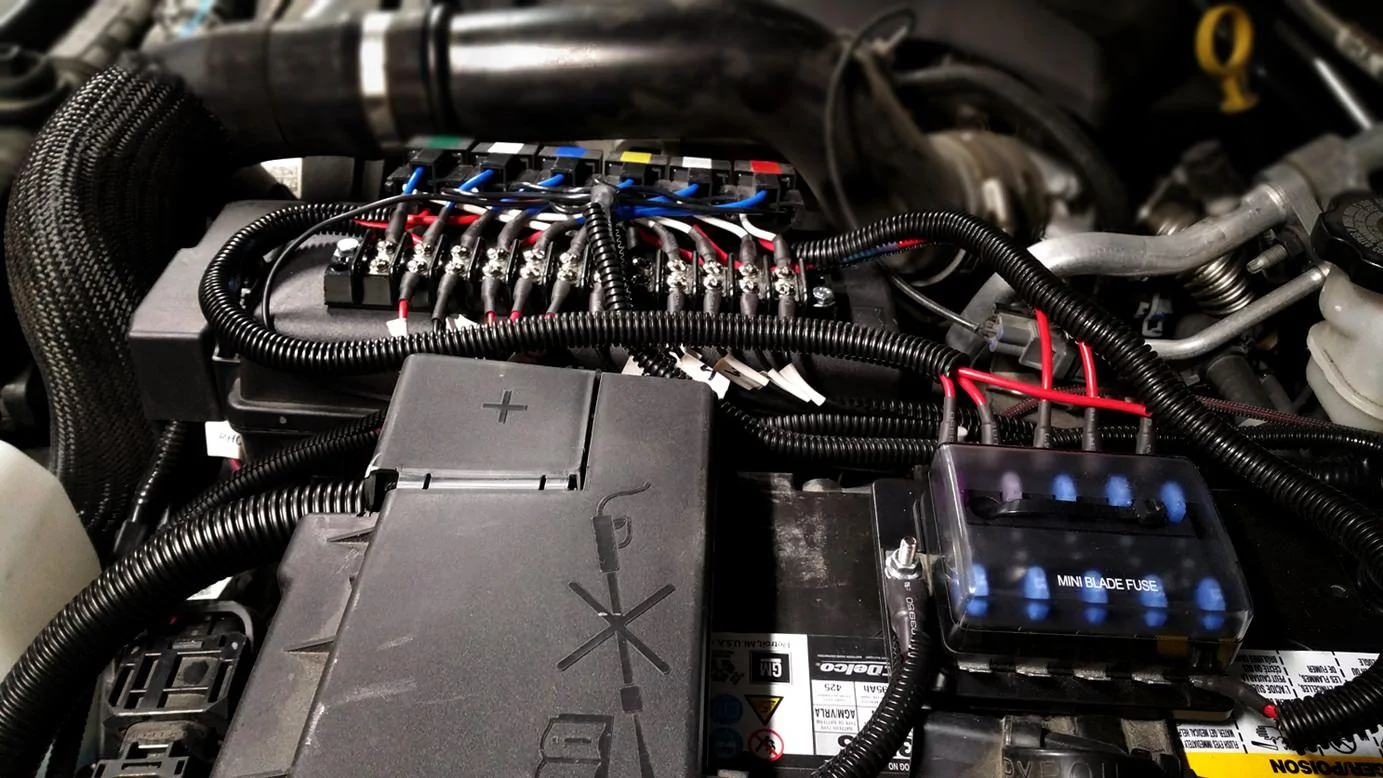

The reason SwitchPros are so expensive, turns this:

Into that clean unit recessed into a fenderwell that you have.

I also like that all the circuits are flashers.

On the Feniex, only circuits 1 and 2 flash, which works for my use in plowing.

Would love to see how the Morimotos stack up against my Diode Dynamics SS3 Pros, light wise. I like the lower profile of the Bangers.



[AK SNO RIDER]

I get it. I run a Feniex 4200 Mini on my Colorado, and it was a ton of wiring. Def not for the faint of heart.

The reason SwitchPros are so expensive, turns this:

Into that clean unit recessed into a fenderwell that you have.

I also like that all the circuits are flashers.

On the Feniex, only circuits 1 and 2 flash, which works for my use in plowing.

Would love to see how the Morimotos stack up against my Diode Dynamics SS3 Pros, light wise. I like the lower profile of the Bangers.

I put SS3 Pros on a couple of our work trucks. They're a nice light too. I kinda feel like the bangers are a bit more light, but I haven't yet been able to actually put both rides side by side and compare simultaneously. One of these days...



[mikeeshim]

Yea very much so, it sags bad. That middle latch for the mid panel actually contacts the horizontal roll bar on bigger bumps.

I'm pretty sure you could get the PakRax kit from Trailrax and modify the RCI rack (drill holes) to alleviate the sag.

The only thing I have on an upfitter now is the ARB compressor, I moved all my lights over to the Switchpros when I installed that.

Where did you get the mount for the Switchpros solid state board in the engine bay?
I used an old Tacoma mount for mine.

Also, if you're willing to give up the OEM AUX switches, I used the SDHQ mount for the control panel to replace the AUX switches altogether. Was never a fan of the wiring on the AUX so I re-did all of that while doing the swap.

Overall, you have an incredible build. After 20 months and 13k miles , I realize I still have a long way to go.



[GoHack]

FSR, Freespirit Recreation.

Nice, thanks!



.



[AK SNO RIDER]

I'm pretty sure you could get the PakRax kit from Trailrax and modify the RCI rack (drill holes) to alleviate the sag.



Where did you get the mount for the Switchpros solid state board in the engine bay?
I used an old Tacoma mount for mine.

Also, if you're willing to give up the OEM AUX switches, I used the SDHQ mount for the control panel to replace the AUX switches altogether. Was never a fan of the wiring on the AUX so I re-did all of that while doing the swap.

Overall, you have an incredible build. After 20 months and 13k miles , I realize I still have a long way to go.

Switchpros sells a Bronco install kit. It comes with the fender bracket, a bracket to mount the switch unit to the drivers grab handle, and an appropriate length comm cable.



[MWILD]

Awesome rig! What are your thoughts on the Milestar Pats? Are they MT02s?
