Body Control Module Fuse Box Location?

[AK SNO RIDER]

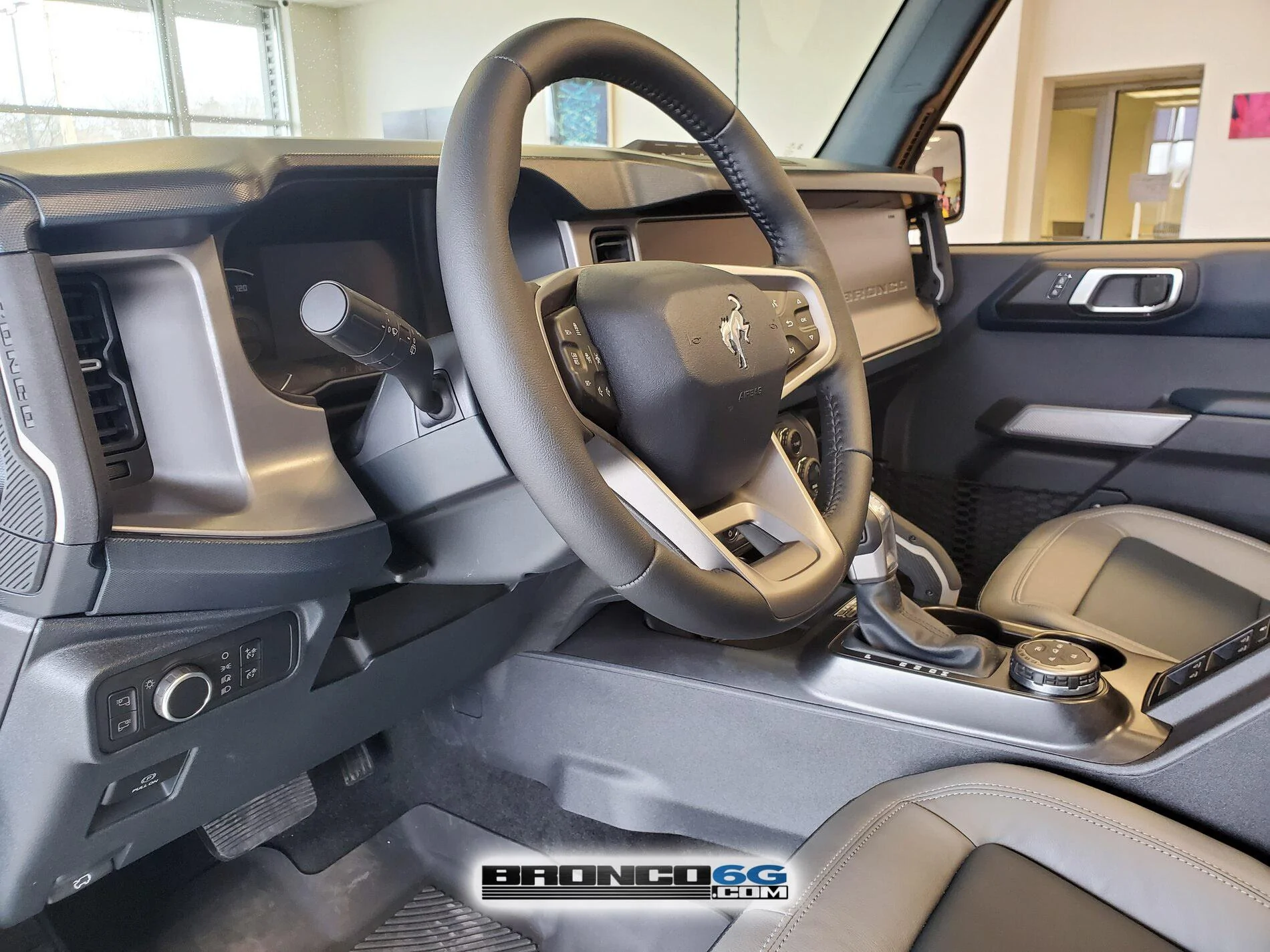

If it's there, it's certainly better disguised than in the Ranger...

Maybe up under the dash out of sight.

Man, I don't even care where it is but now I'm kinda invested in this...

Sponsored



[drive21bronco]

If it's there, it's certainly better disguised than in the Ranger...

Maybe up under the dash out of sight.

Man, I don't even care where it is but now I'm kinda invested in this...

Yea looking at that photo maybe they moved it over to the passenger side behind the glove box for the Bronco



[drive21bronco]

I will be able to give the OP a better answer when I can dick around with my Bronco and look for it.. In a few months.



[Mattbar1]

I will be able to give the OP a better answer when I can dick around with my Bronco and look for it.. In a few months.

Thank you!!!



[Ksjrb03]



[Mattbar1]

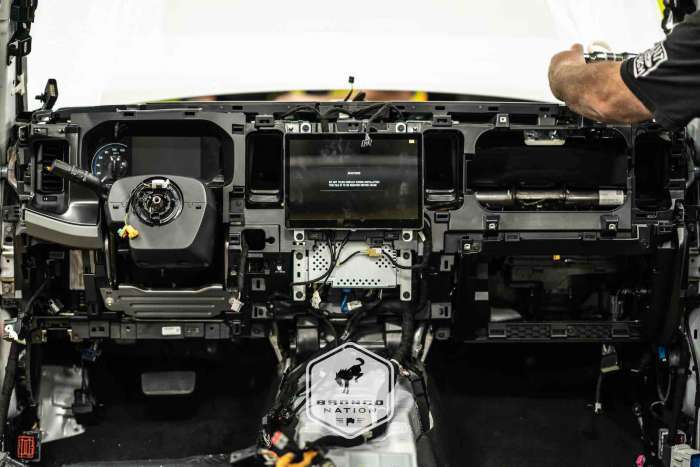

That is a great photo! Anyone see a fuse panel?



[Ksjrb03]

That is a great photo! Anyone see a fuse panel?

I think its in the same place as ranger with the white cover.



[CO-Bronco]

That is a great photo! Anyone see a fuse panel?

Not yet...



[flip]



[CO-Bronco]

This may be it!!!

Out of curiosity what manual are all these screen grabs out of?



[Mattbar1]

This may be it!!!

Out of curiosity what manual are all these screen grabs out of?

Confirmed. It is on the Driver side.

The white card is the Keyless Keypad code.

As I said, the Owner's Manual is wrong.

Thanks, everyone for all the help! This is a very difficult spot to get to.



[CO-Bronco]

Confirmed. It is on the Driver side.

The white card is the Keyless Keypad code.

As I said, the Owner's Manual is wrong.

Thanks, everyone for all the help! This is a very difficult spot to get to.

Pictures please!!



[flip]

This may be it!!!

Out of curiosity what manual are all these screen grabs out of?

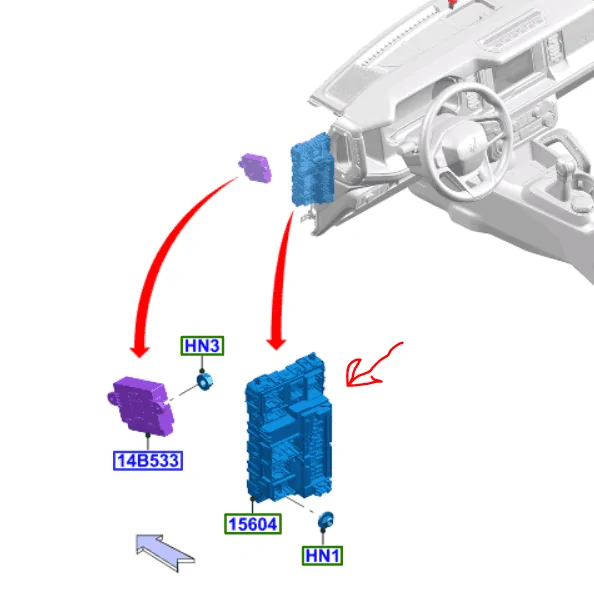

This is from our part software system, Microcat.



[CO-Bronco]

This is from our part software system, Microcat.

Well it sure is awesome!
