Auxiliary Upfitter switches and wiring.

[D.Hess]

I’ve read through quite a few posts, noting some wiring diagrams, which I’m not very good at figuring out and the information sent from Baja designs was incorrect so here it goes.

I ordered Baja designs fog pocket kit 44-8179-UP with the following:
1. squadron pro spot
2. S2 Pro driving/combo
3. S2 SAE amber

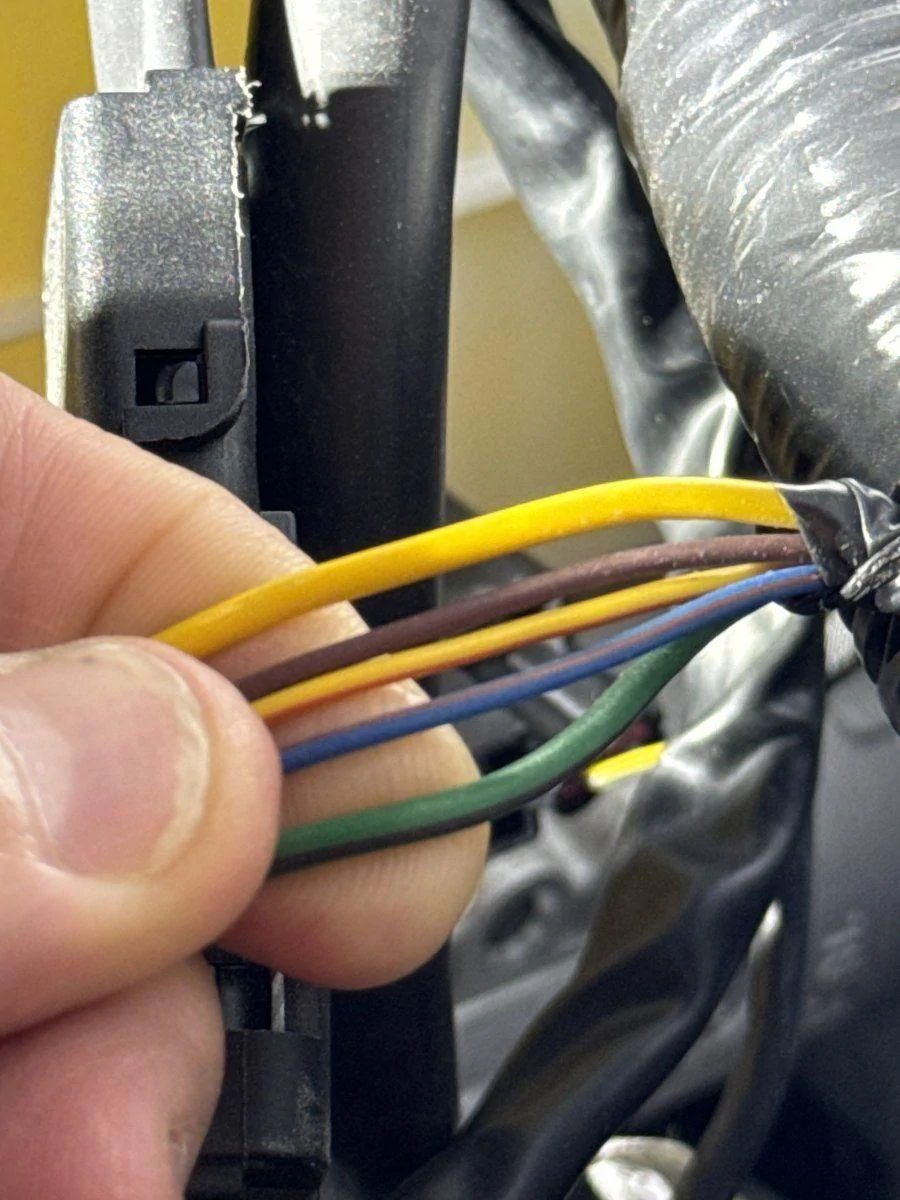

There are only five upfitter wires on the firewall harness, not 6.

I understand AUX 1 was used for the second set of OEM off-road lights in the fog pocket 10A (violet/green)

The dash switch was used for the first set of OEM lights, see pic

The pigtail wiring from @4x4TruckLEDs.comit’s supposed to allow use of the dashboard fog switch from my understanding which would still leave AUX 1 open for use.

Other than the plug at the bumper, where else can I access that wire display into using Baja designs wire splice adapters

Sponsored



[D.Hess]

DS pin connector: brown, violet w/green stripe, black x2
PS pin connector: yellow w/ red stripe, violet w/ green stripe, black x2
These are from the Raptor plug on the vehicle side.

On the light assembly side, the connectors are the same on both lights, Violet w/green, stripe and yellow w/ red stripe, and black X2.

again, I’m just trying to look for the violet with green stripe in the engine bay, if I can find it. Unless I can have a pigtail made utilizing both the fog switch and the AUX 1 one switch.



[Tye]

Order the wiring harness from spvparts. it will make your life much easier.

https://specialtyperformanceparts.c...MzuJH-sy5uKGUs7vCgv04lbusX_ul3cRoCSZ4QAvD_BwE

Give John a call there, he is great to work with
