ARB twin compressor installed with Grimm speed bracket

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor

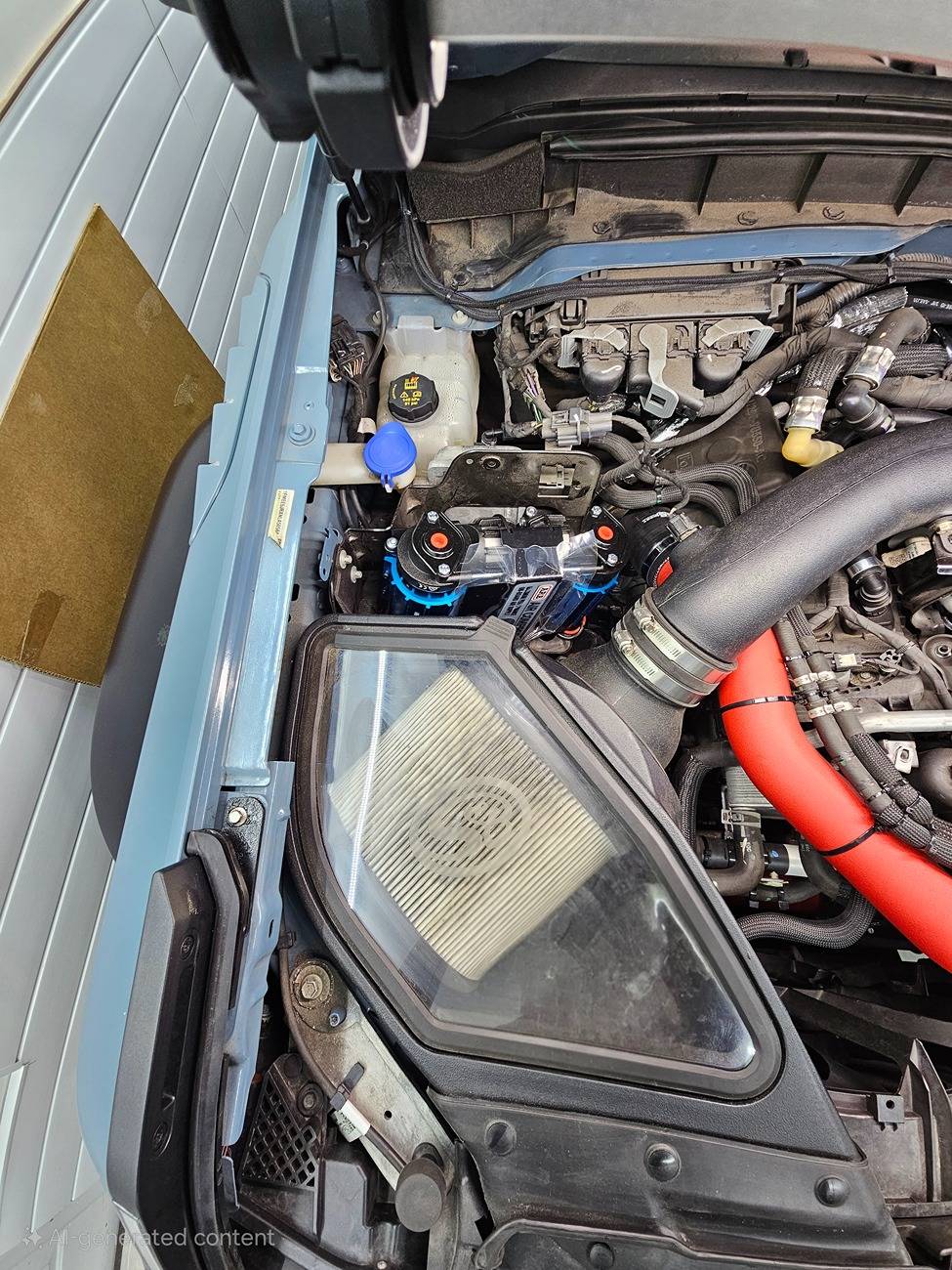

Bought this a while ago. Never installed. This looks like it could work with a custom bracket. . Thoughts?

Not ai generated .. edited my face reflection from the intake 😂😂
Ford Bronco ARB twin compressor installed with Grimm speed bracket 20250630_172020(1)
Sponsored



Bschurr

Raptor
Well-Known Member
Joined
Jan 28, 2021
Threads
28
Messages
1,808
Reaction score
4,160
Location
NY
Vehicle(s)
2023 Braptor / 2023 Heritage LE / 2016 JKU
Your Bronco Model
Raptor
Clubs

Bought this a while ago. Never installed. This looks like it could work with a custom bracket. . Thoughts?

Not ai generated .. edited my face reflection from the intake 😂😂
I thought @4x4TruckLEDs.com made an underwood mount for the Braptor but couldn’t find it on their site. Perhaps Adam will chime in with a solution for a fellow NYer…

I❤🗽


4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
538
Messages
6,084
Reaction score
7,024
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

I thought @4x4TruckLEDs.com made an underwood mount for the Braptor but couldn’t find it on their site. Perhaps Adam will chime in with a solution for a fellow NYer…

I❤🗽
no room on a bronco raptor for a twin under the hood sorry


jtgensler

Wildtrak
Well-Known Member
First Name
Jamison
Joined
Sep 24, 2024
Threads
9
Messages
530
Reaction score
831
Location
Clarion, PA
Vehicle(s)
2022 Bronco
Your Bronco Model
Wildtrak
Clubs

You could probably jam it in there with a custom bracket, but I don't think I would.
Mine (non Braptor) is mounted there, but it's not shoved down in like that, it's at least up where it can get a little air to it.
I'd probably look somewhere else.
Also you need to think about having room for your fittings & access to the filters on the compressor to change them.


1979

Raptor
Well-Known Member
First Name
Ben
Joined
Jul 15, 2020
Threads
21
Messages
845
Reaction score
2,685
Location
Baltimore, MD
Vehicle(s)
2023 Bronco Raptor
Your Bronco Model
Raptor
Clubs

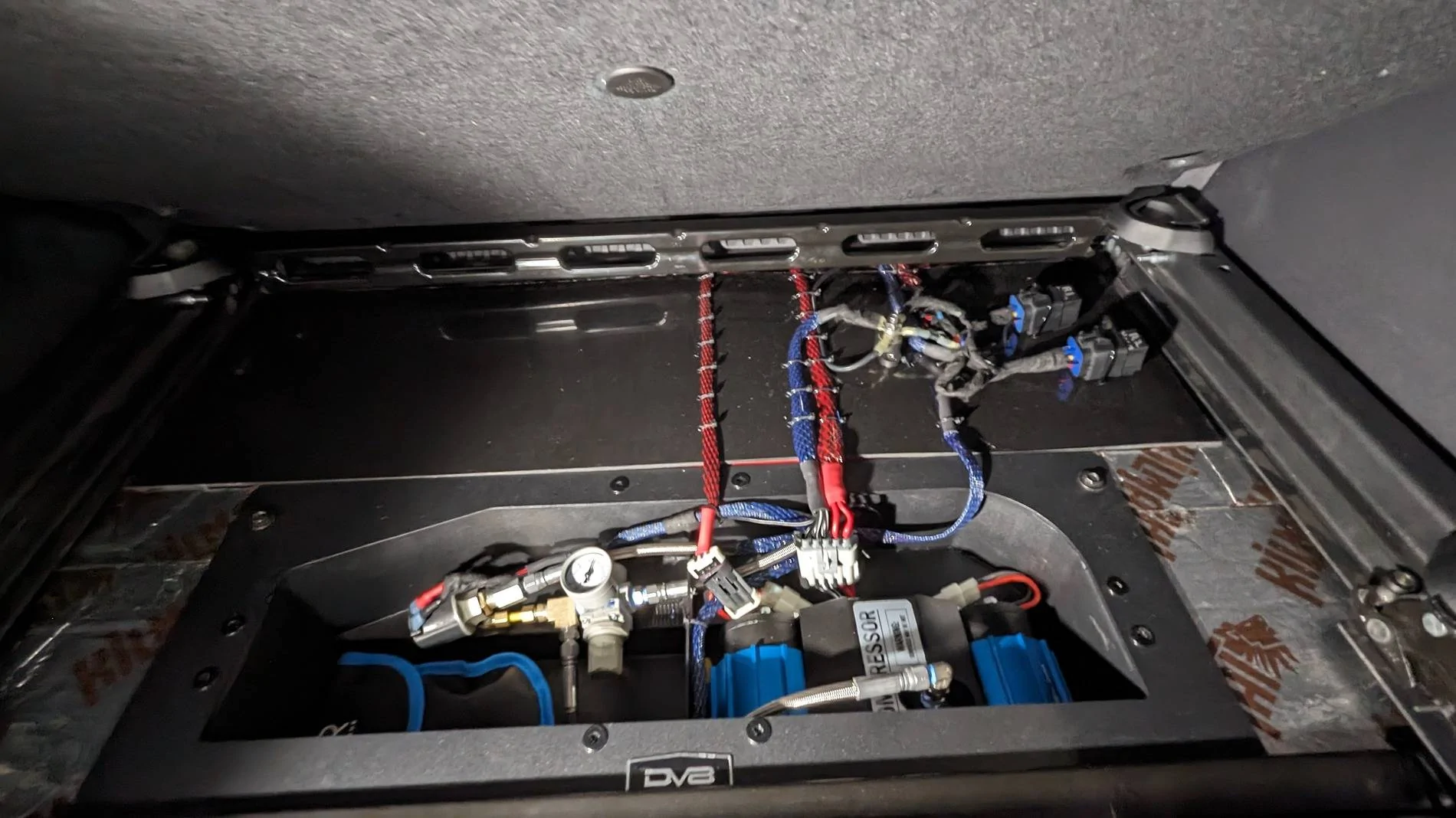

I looked at trying to do the same. I really liked the underhood mount on my Badlands. I ended up mounting it in the back with an American Adventure labs mount. Not ideal but it’ll do the job.


Sponsored
OP
OP

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor
I looked at trying to do the same. I really liked the underhood mount on my Badlands. I ended up mounting it in the back with an American Adventure labs mount. Not ideal but it’ll do the job.
the s&b filter box gave me all that space you see in the picture actually... there was a lot less with the oem filter box.
i'll be the guinea pig, ordered the grimmspeed vertical mount to try.
had this compressor sitting around for 2 years , its time to install it lol.( bought this for my f150 raptor)

OP
OP

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor

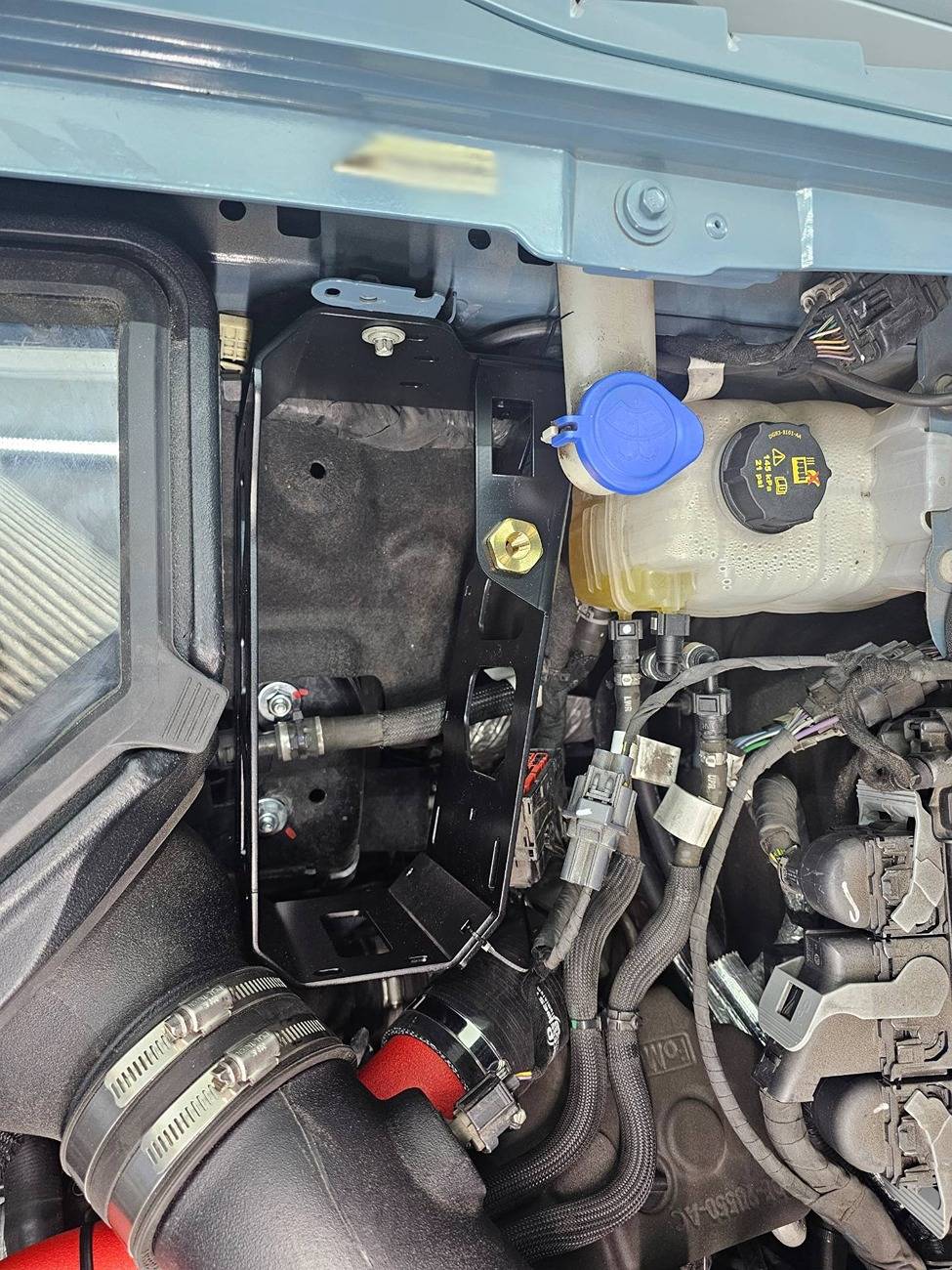

For the doubters. Will probably need to drill holes in the bracket and all. Grimm speed bronco arb mount and sb air filter

Ford Bronco ARB twin compressor installed with Grimm speed bracket sketch-1751591866014

Last edited:
OP
OP

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor

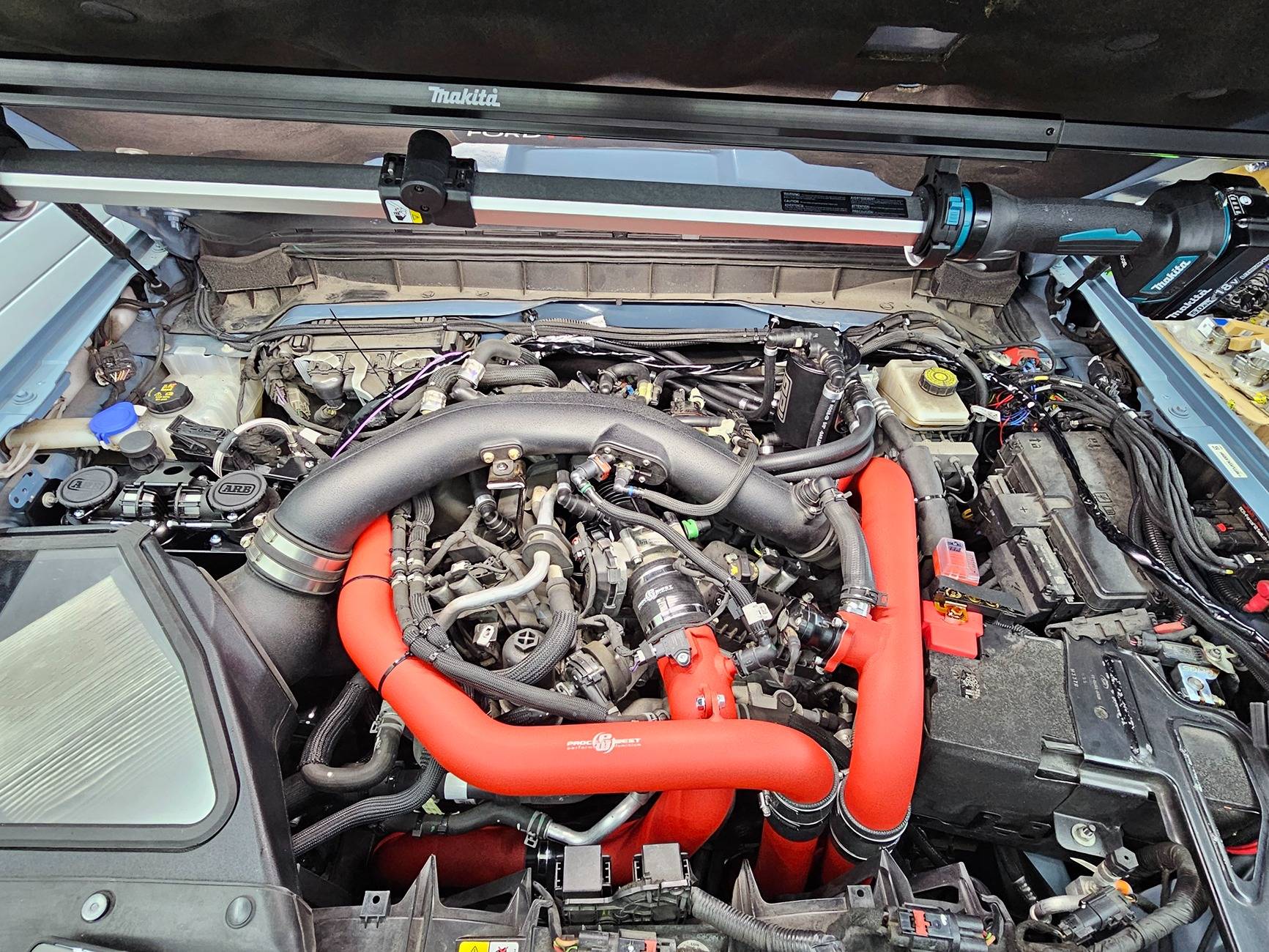

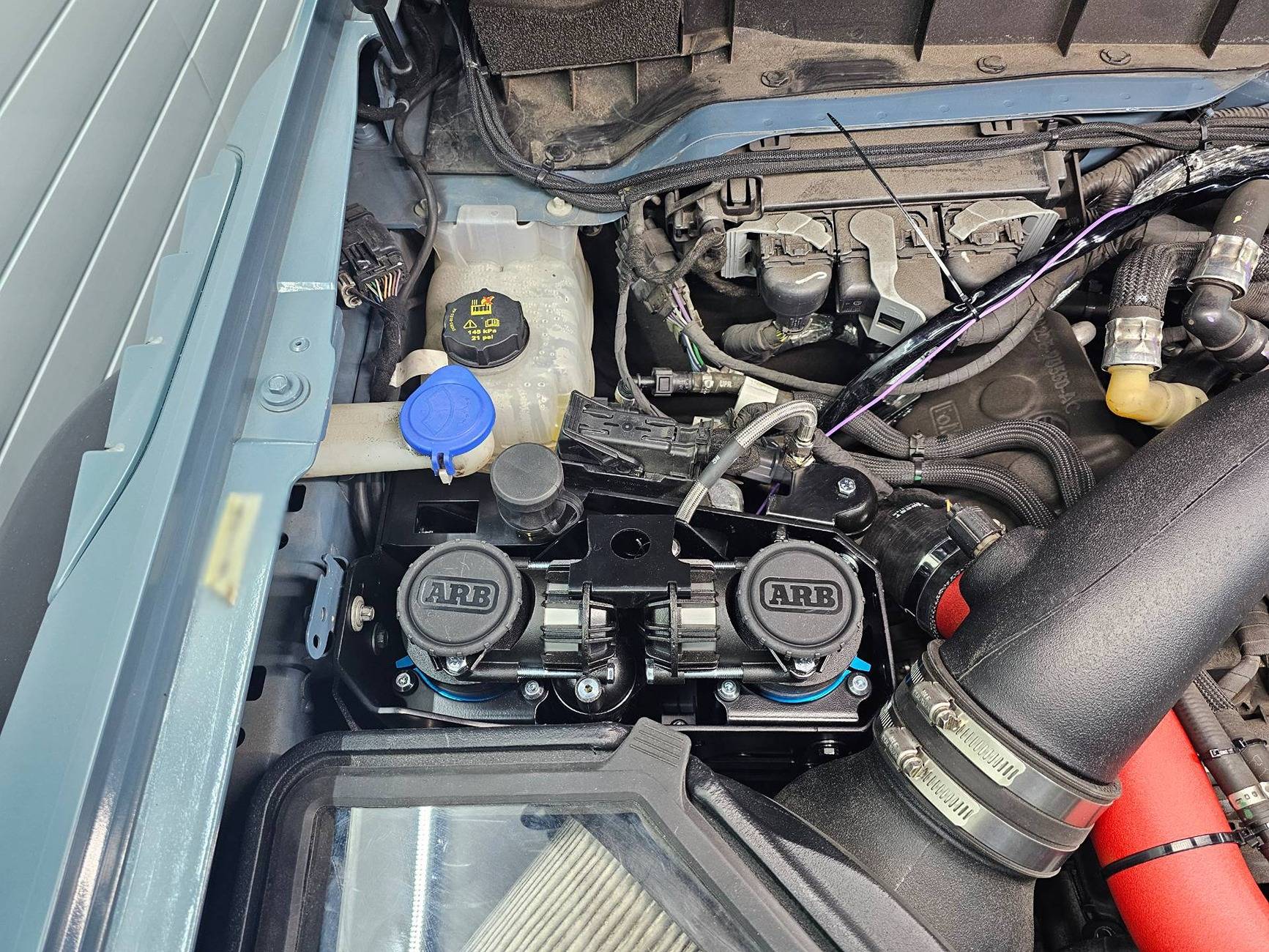

After a few hours. It's mounted via the original 2 points on the body wall. Waiting on a isolation bushing to mount on the bottom. I bent the Grimm bracket too long. Came with a 25mm bushing or something. I need half the height. Also possible to make the back side bracket work. I have very rudimentary bending skills.. has to drill one hole on the grimm.
S&b air filter needed to fit . Manifold installed as well as 40" line for a secondary air location.

Ford Bronco ARB twin compressor installed with Grimm speed bracket sketch-1751602819410


Ford Bronco ARB twin compressor installed with Grimm speed bracket 20250704_000651


1979

Raptor
Well-Known Member
First Name
Ben
Joined
Jul 15, 2020
Threads
21
Messages
845
Reaction score
2,685
Location
Baltimore, MD
Vehicle(s)
2023 Bronco Raptor
Your Bronco Model
Raptor
Clubs

This looks really promising


Sponsored
OP
OP

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor

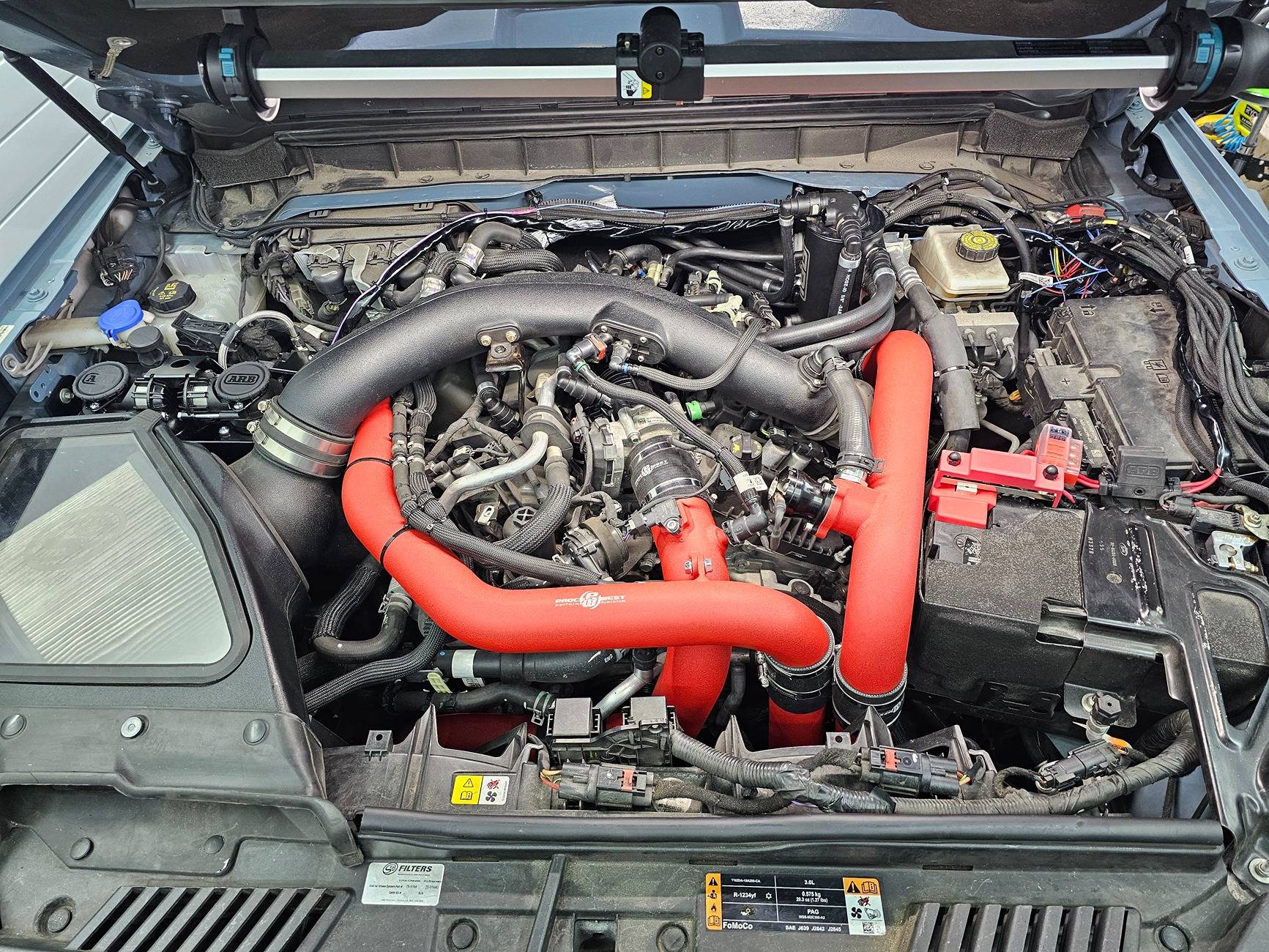

Installed and working. Just need a bracket for my secondary air location . Confirmed arb twin will fit with an intake.

Ford Bronco ARB twin compressor installed with Grimm speed bracket 20250704_112755


Ninjak

Raptor
Well-Known Member
First Name
David
Joined
Feb 19, 2022
Threads
27
Messages
2,739
Reaction score
4,699
Location
Miami
Vehicle(s)
2024 Bronco Raptor 68 Mustang GTA 2024 Mustang Dark Horse
Your Bronco Model
Raptor
@rayofsi : Looks good. A little ingenuity can go a long way. BTW, whose charge pipes are those? I know the BRaptor may not have as many choices as the 2.7 or 2.3 had.

OP
OP

rayofsi

Raptor
Well-Known Member
Joined
Feb 14, 2022
Threads
25
Messages
553
Reaction score
522
Location
Staten Island, NY
Vehicle(s)
Raptor Gen2
Your Bronco Model
Raptor
Is that the brushless version or regular version?
Regular lol, had this sitting around for 2 years. Meant to take the single out of my f150 raptor for a double. The brushless one will work with some new holes being drilled.
