Bronco Speaker connections

[Blksn955.o]

Looking to buy some open ended plugs to plug into the factory harness. I have seen two referenced but can we get a confirmation maybe?

Amazon says 98+ Ford

The below link is from another thread on here from the B&O on the Outer Banks.
Link in other thread

Both look like the same but does this look like it works on a 2021 Bronco?

Specifically the std 6 speaker setup.

Sponsored



[peta8368]

Here's some pictures of the 4" speakers' connector, from another thread.
https://www.bronco6g.com/forum/thre...tereo-wiring-diagram.20275/page-6#post-727393

The connector does not look the same as the commonly found "98-up Ford" connectors.

Our best guess is these connectors mentioned here, orderable from Mouser.com, available in October. But these are connectors only, you still need the pin receptacles and wires to go with them
https://www.bronco6g.com/forum/thre...tereo-wiring-diagram.20275/page-7#post-728218

Peter



[flip]

I can get you part numbers for the harness side which means you would have to find the mating one to work. I know one is an AMP/TE but have not had much luck figuring out what type/line.

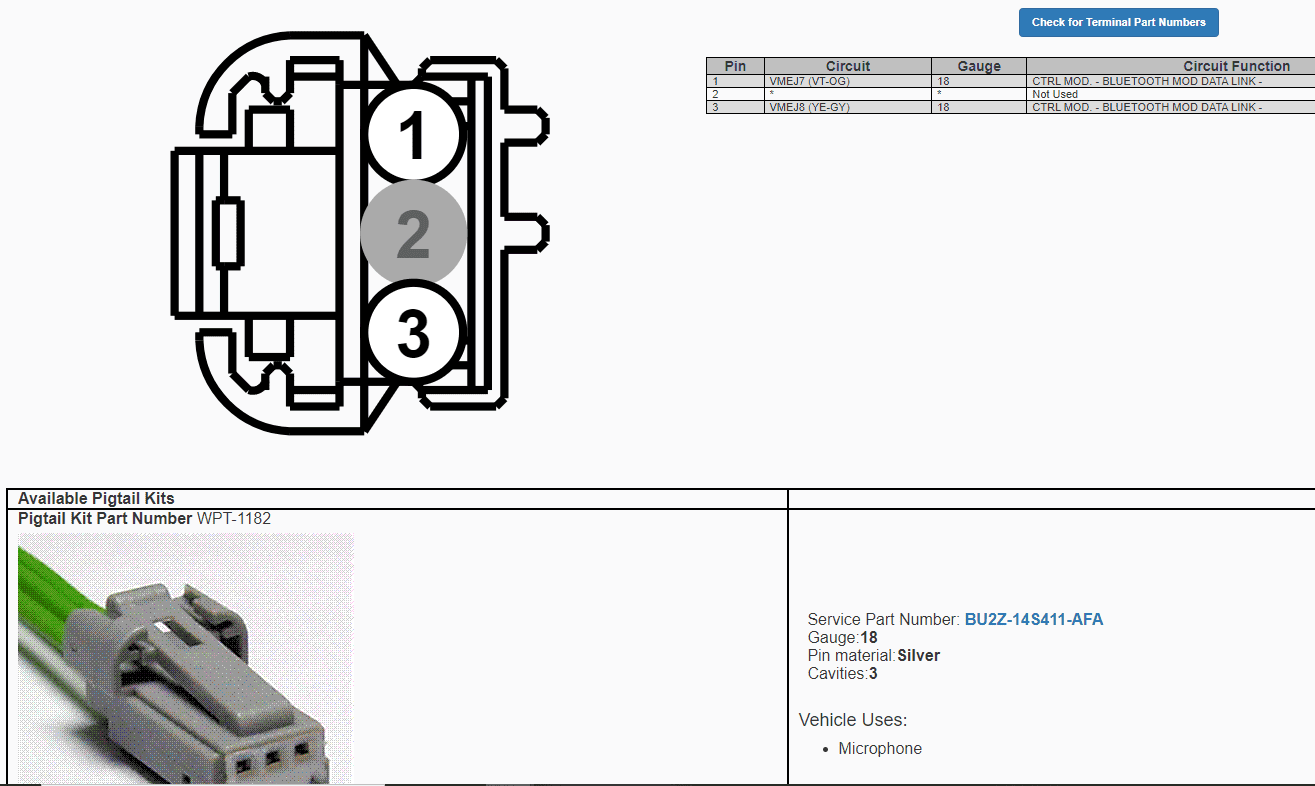

Rear roll bar and dash speaker connection.

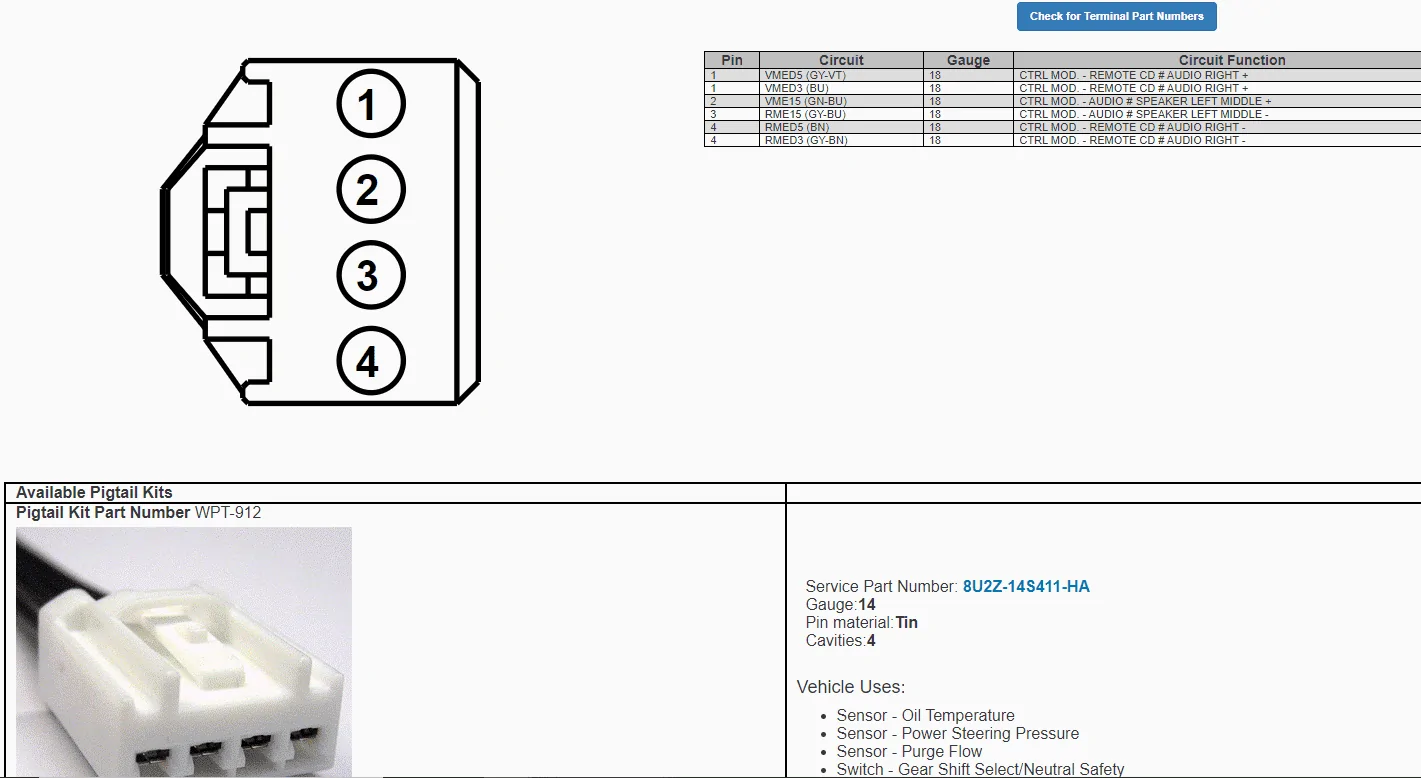

Kick panel.



[Blksn955.o]

Thank you @flip

So we just need to find the corresponding male for these plugs as the ones you posted above look to be female that are the ends of the overall harness.

That also answers a question I thought of...are the dash and kick panel the same plug.



[flip]

Thank you @flip

So we just need to find the corresponding male for these plugs as the ones you posted above look to be female that are the ends of the overall harness.

That also answers a question I thought of...are the dash and kick panel the same plug.

Yes. The white one is a of TE/AMP Yazaki 7183-4347 that I actually had from an old harness. The imprint is sooooooo small I could only make out the triangle marking but not any numbers. Searched Yazaki's website for a long time and it appears they don't make the male side.

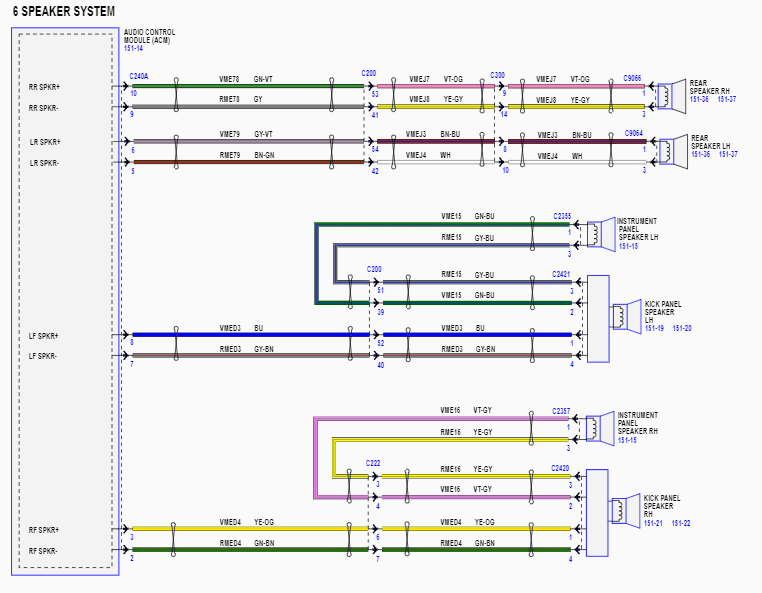

If you look at the diagram 4 go into the kick panel. Two of those then go back up to the dash speakers. I can understand saving a few feet of wiring but is the kick panel speaker connector just a jumper on the speaker side or is it some sort of component?
