2025 Bronco Raptor uplifter diagram

[Thrillingmouse6837]

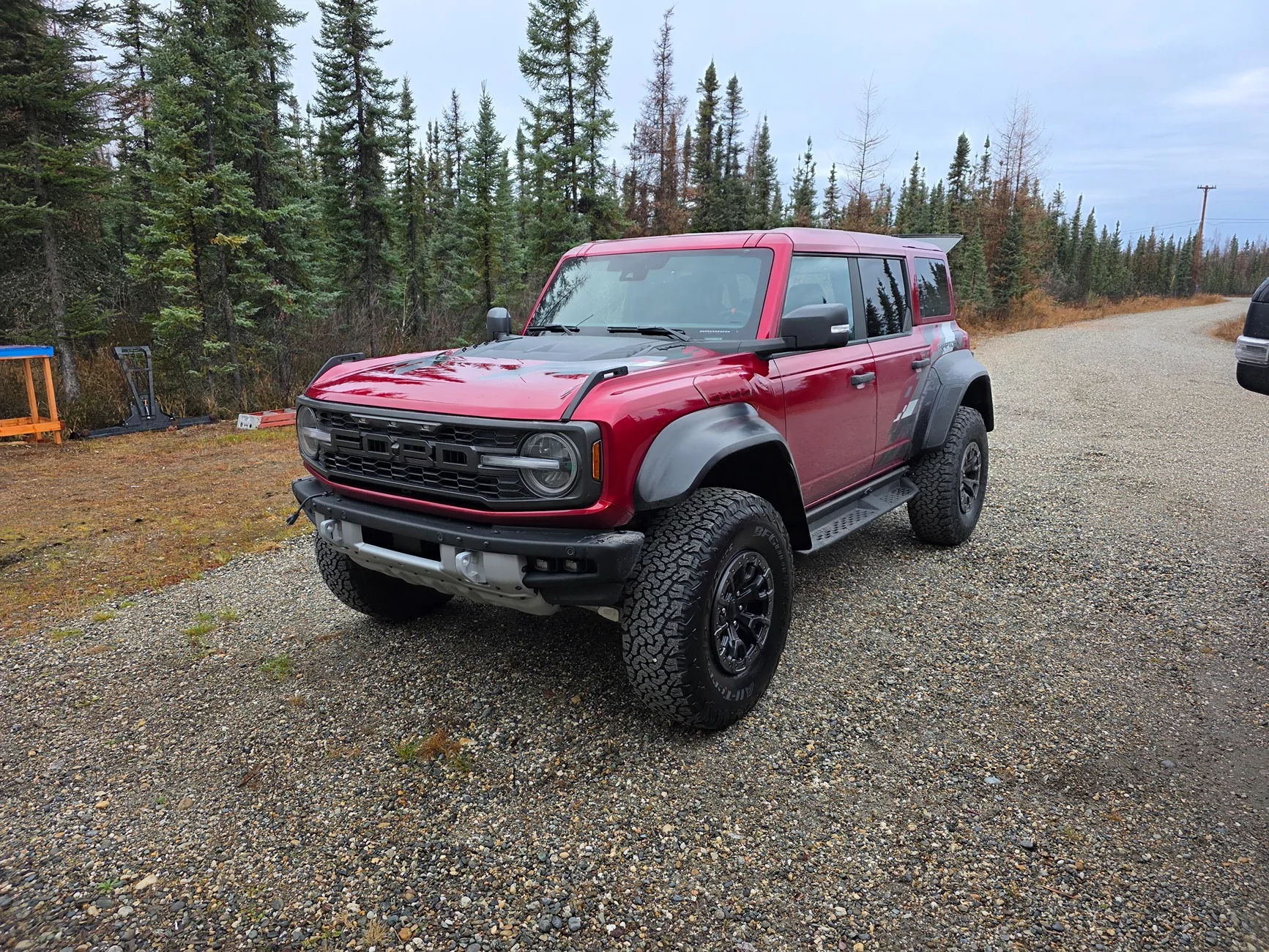

Hello out there. I'm looking for the diagram for the factory installed uplifter switches for a 25' Bronco Raptor. Everything I keep digging up is 24' or earlier. So far I'm seeing conflicting wire colors and would like to line those uplifter switches up. Photo of the chart, link to where its at online, or even a PDF would be great. Picture for attention.

Sponsored



[Gene Dios]

They all share the same owners manual per model year. The wiring assignments are listed somewhere in the 500 pages. Your vehicle has the manual in the infotainment system if you're worried that online docs aren't up to date for your 2025. The raptor is different than other Broncos in that 1 and 3 are swapped. This is reflected in the manual. But check what it says in the vehicle itself in case something was updated for 25.



[Thrillingmouse6837]

They all share the same owners manual per model year. The wiring assignments are listed somewhere in the 500 pages. Your vehicle has the manual in the infotainment system if you're worried that online docs aren't up to date for your 2025. The raptor is different than other Broncos in that 1 and 3 are swapped. This is reflected in the manual. But check what it says in the vehicle itself in case something was updated for 25.

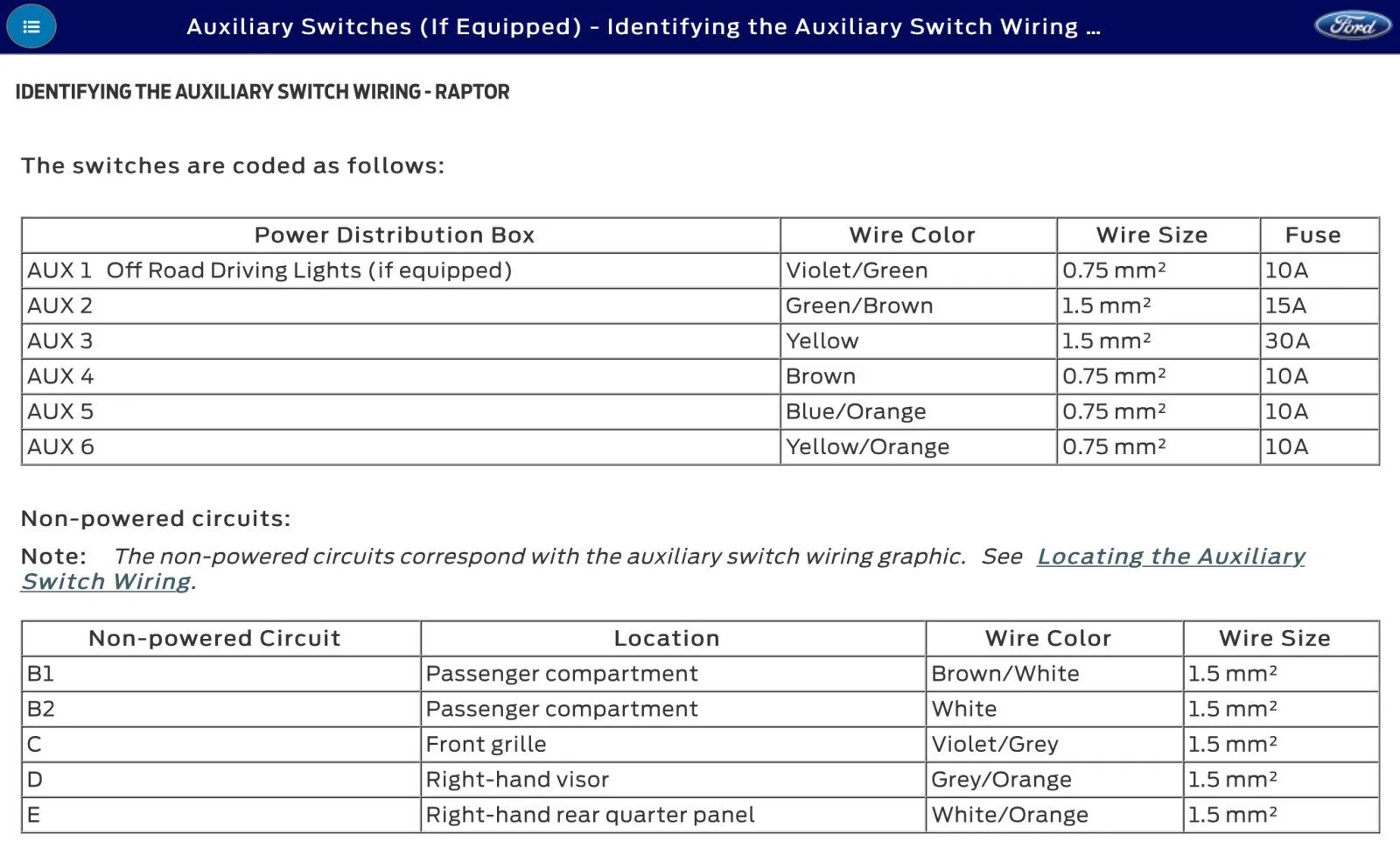

Thank you, I figured it out in the end. Searched that owners manual up and down, never found that dang diagram. Just used one someone had posted somewhere else.



[Deadpool392]

I also searched the owners manual, for the 25 model year the diagrams were removed and I believe it points you to the dealership. It basically seemed as though Ford didn’t want folks doing the wiring of anything themselves.
