Help identifying bracket number NOT the recovery hook

[NC_Oak]

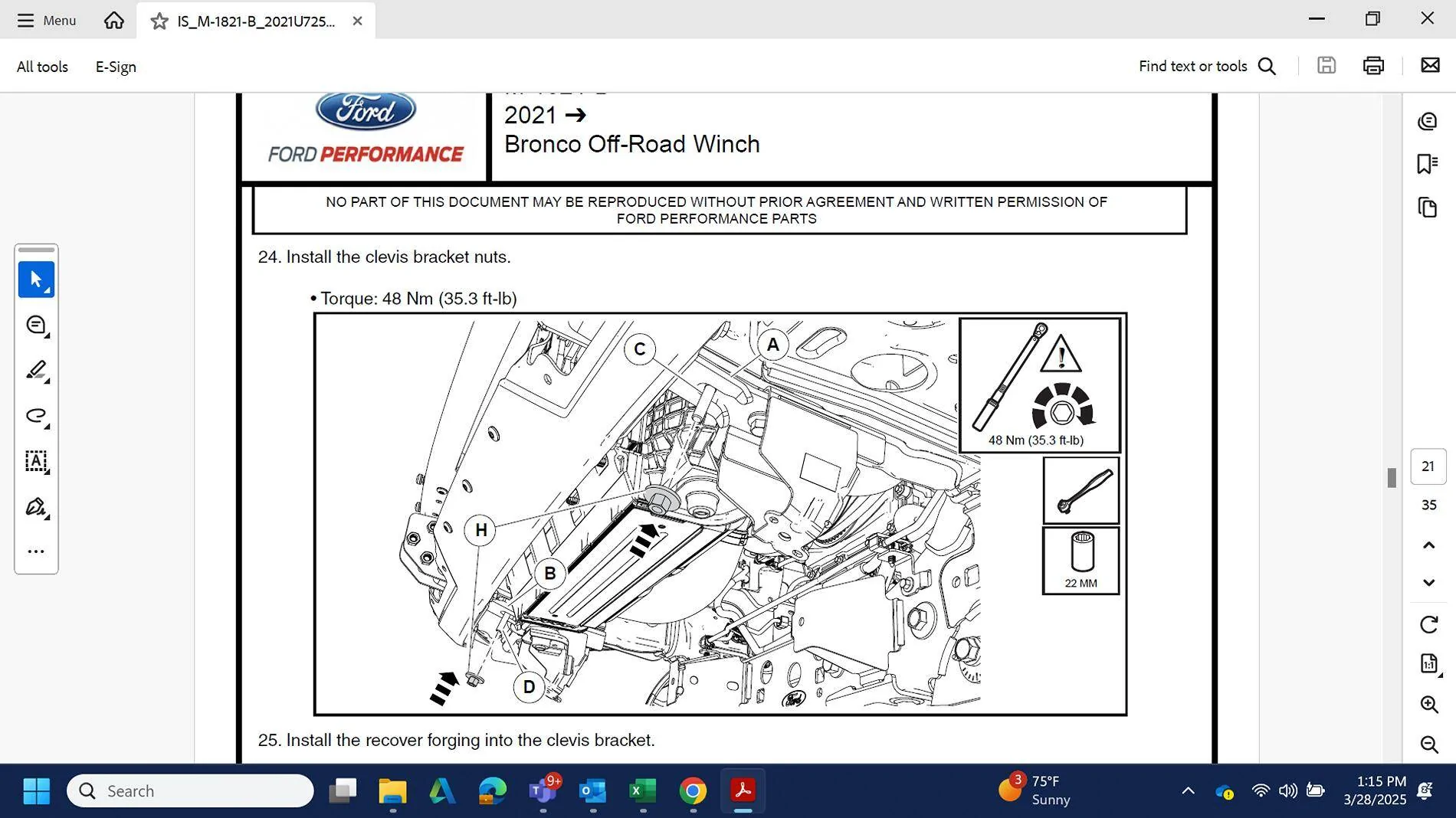

Got a BB with factory recovery hooks, p/n MB3Z-17A955-A. I intend to install the modular bumper and ford winch. The BB's recovery hooks need to be cut off (no biggie) and I believe the winch mount's CAC brackets (N2DB-19E518-CA and N2DB-19E518-FA) will still fit in the top of the hook bracket. There's room as the recovery hooks are welded below where the CAC brackets slot in. However, I am not sure the clevis brackets (N2DB-19E515-BA and N2DB-19E515-CA) will clear, part A in the photo below. I think it will cuz they do not appear to breach the opening of the hook / bracket. If I cut the hooks flush then it would fit.

However, I was looking for the p/n for the NON HOOK bracket part, that would be on a trim level without the recovery hooks from the factory. I cannot find it. Anyone? Was gunna potentially have on hand in case I run into an issue and return if not needed.

Sponsored



[Brian_B]

https://www.bronco6g.com/forum/threads/part-number-for-modular-bumper-bracket.39763/



[NC_Oak]

https://www.bronco6g.com/forum/threads/part-number-for-modular-bumper-bracket.39763/

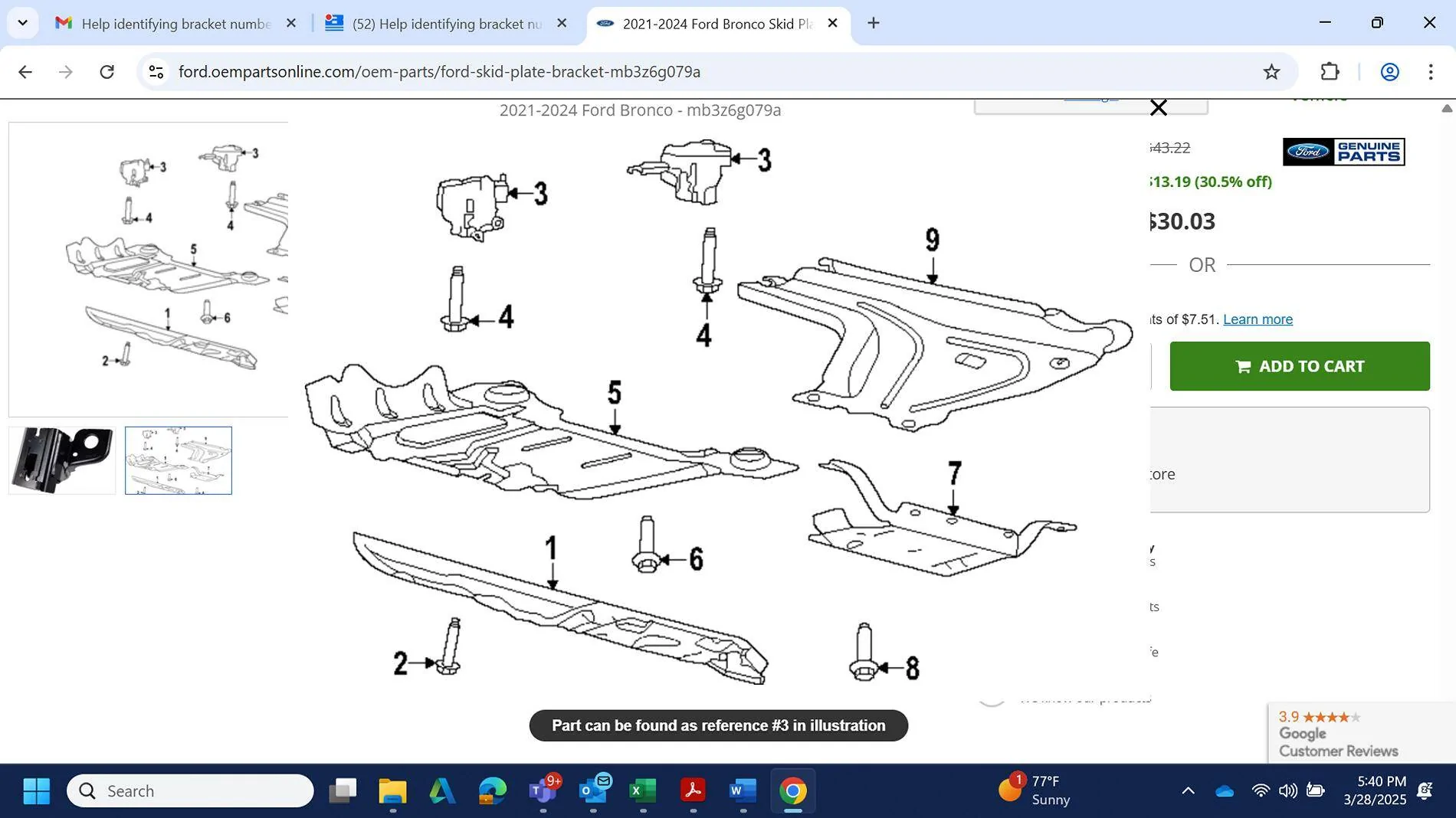

I saw that on the part diagram but it looked like it was in the back of the engine skid. It looks right but the placement in the below threw me off. Unless those are just above the skid in the diagram as they aren't a part of it



[Brian_B]

I saw that on the part diagram but it looked like it was in the back of the engine skid. It looks right but the placement in the below threw me off. Unless those are just above the skid in the diagram as they aren't a part of it

That's it. #3 in the diagram.

The little thumbnail pic center left is definitely the right part. The circle area is where the intercooler mount sits.

Keep in mind it's 2 different p/n's for left and right hand, but they show it as #3 for both sides. The diagram is a bit hard to follow, but it's clear when you are in there, can't really screw it up.



[NC_Oak]

That's it. #3 in the diagram.

The little thumbnail pic center left is definitely the right part. The circle area is where the intercooler mount sits.

Keep in mind it's 2 different p/n's for left and right hand, but they show it as #3 for both sides. The diagram is a bit hard to follow, but it's clear when you are in there, can't really screw it up.

I hopped underneath and that certainly looked like it but was thrown off by that diagram. Thanks for confirming! PRice works too for reassurance
