Everglades Snorkel Photo Request

[4x4TruckLEDs.com]

Hey guys. We're looking to improve some of our products and I'm hoping some of you with an Everglades can post some photos for us that will help us out. We don't have an Everglades in the shop anymore.

Could you take some photos of your snorkel mounting system? The part that bolts the snorkel to the cowl is what we're after.

Thanks.

Sponsored



[CitrusBronco]

This thread I think has what you might want to see https://www.bronco6g.com/forum/thre...update-completed-water-flow-test-video.69930/

If you have a specific pic item let me know and I’ll see if I can accommodate.



[4x4TruckLEDs.com]

This thread I think has what you might want to see https://www.bronco6g.com/forum/thre...update-completed-water-flow-test-video.69930/

If you have a specific pic item let me know and I’ll see if I can accommodate.

Thanks but it does not. I need to see a photo of the inside where the snorkel bolts to the cowl



[Glade Runner]

Thanks but it does not. I need to see a photo of the inside where the snorkel bolts to the cowl

Are you just wanting a photo of the exterior bracket?



[CitrusBronco]

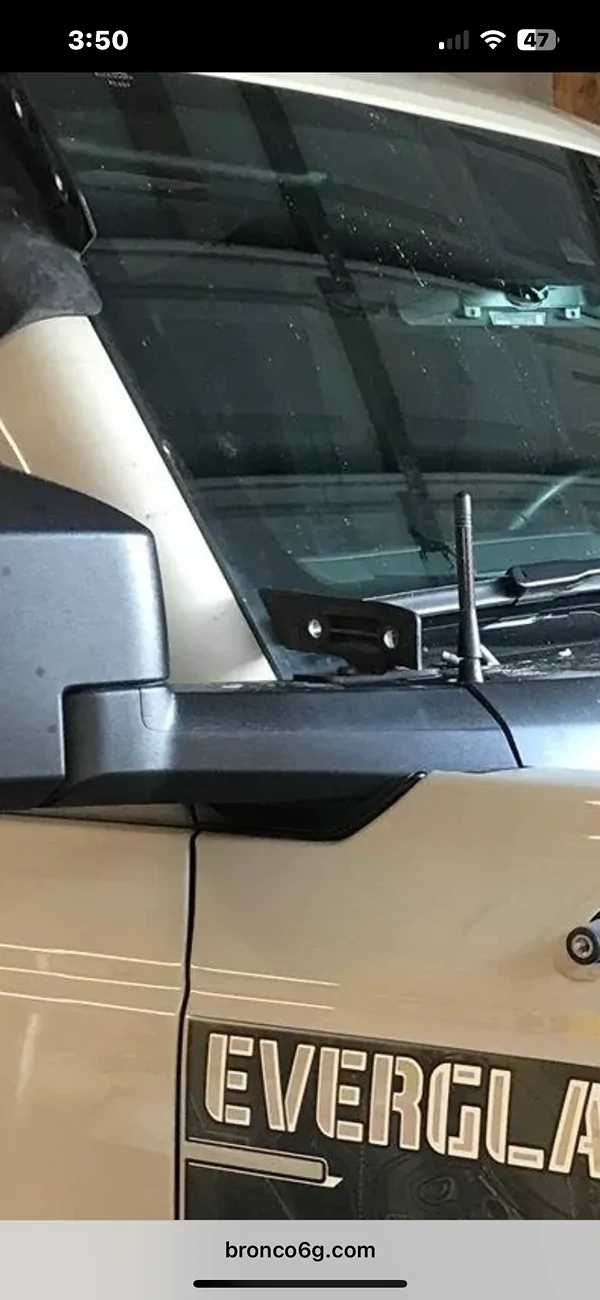

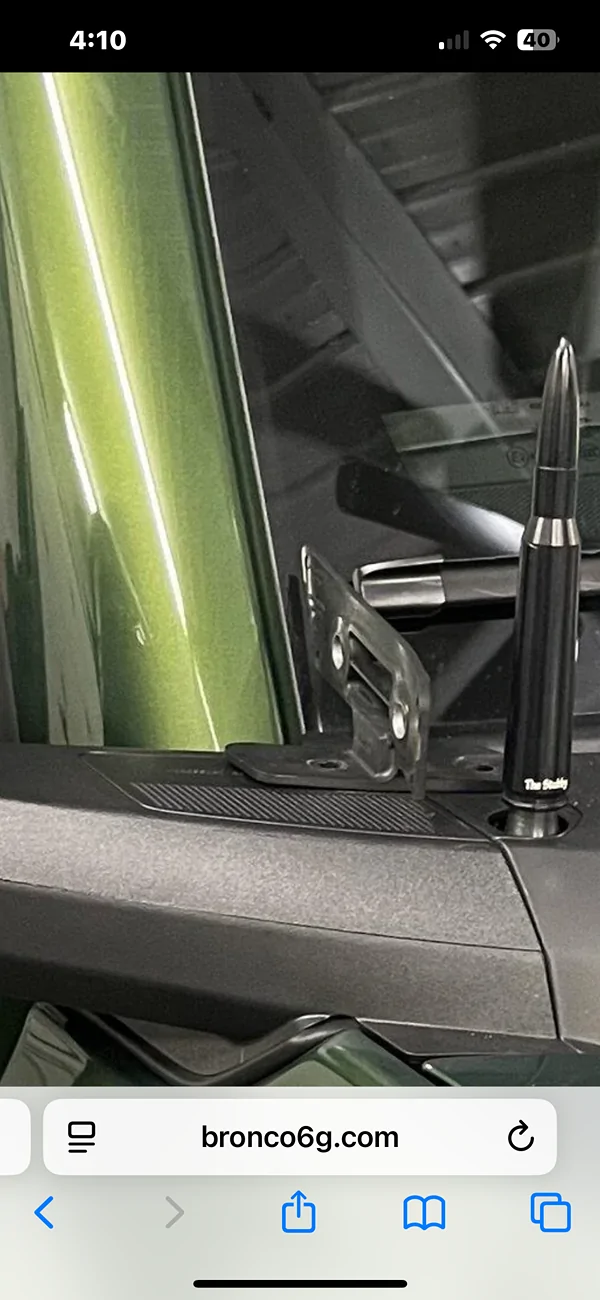

This is another angle of what of Glade Runner shared.



[4x4TruckLEDs.com]

Are you just wanting a photo of the exterior bracket?

Yeah that kinda works, thanks.

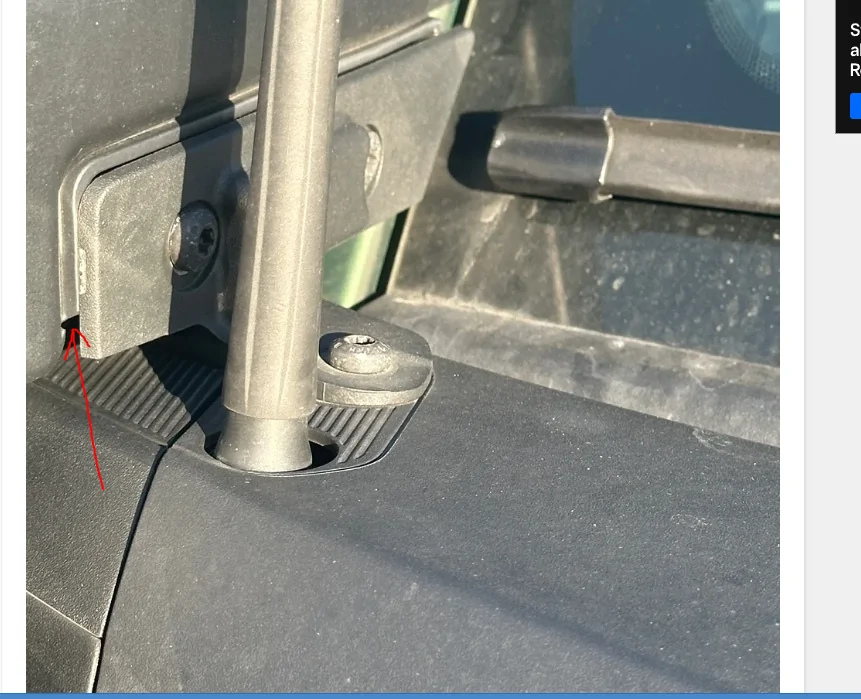

Any way to get a photo of the underside of the bracket, where it mounts (and it's hidden by the actual snorkel). Meaning... WHAT is under the actual snorkel? There's another bolt i think, right? It's under neath in that cavity that I have marked... I think there's another bolt right. The cowl has 2 bolts. One is clearly visible but the 2nd one that is under the snorkel... is that actuall attached to the snorkel?

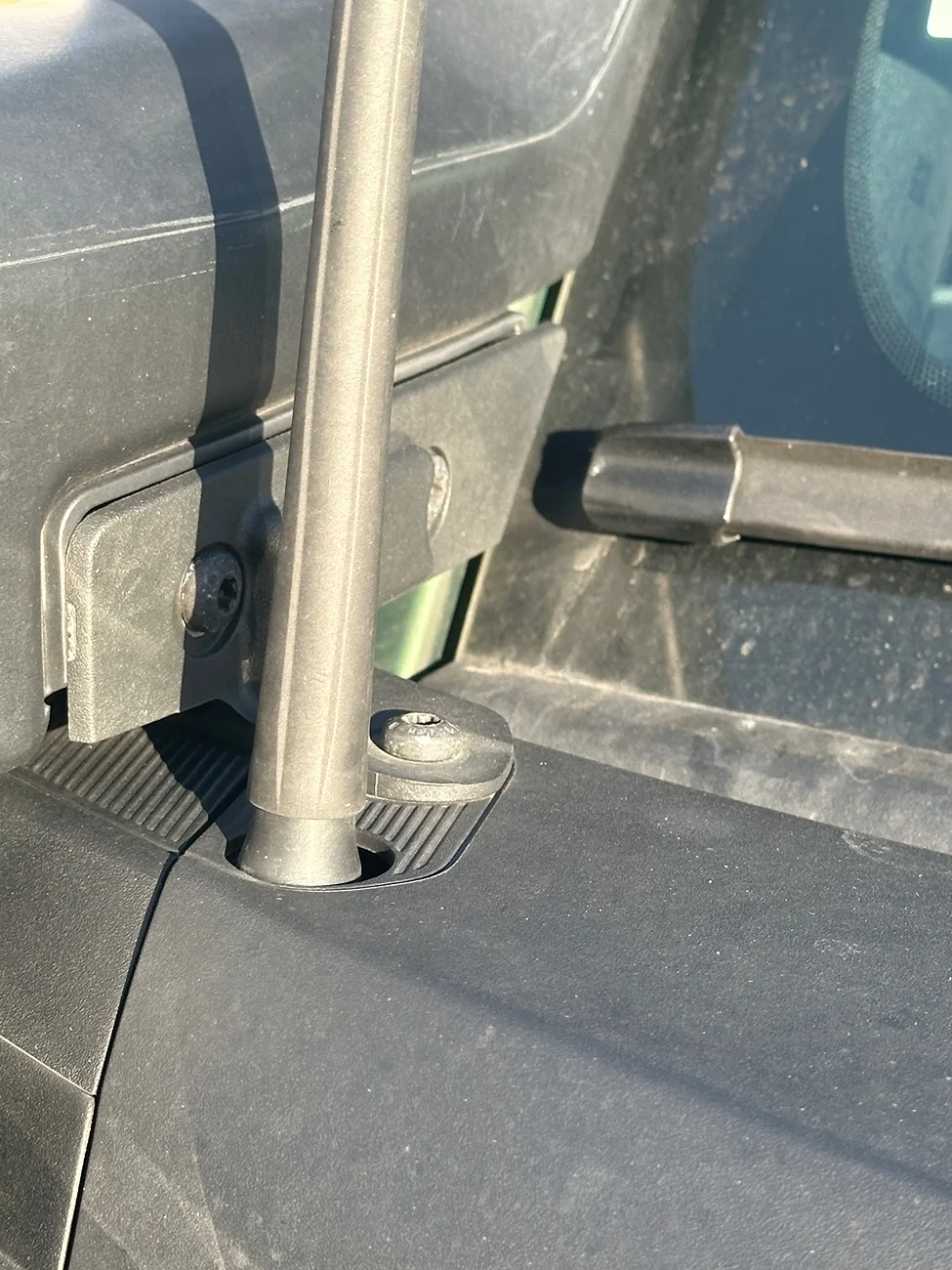

You can kind of see it in your 2nd photo but hard to make out.



[CitrusBronco]

Yeah that kinda works, thanks.

Any way to get a photo of the underside of the bracket, where it mounts (and it's hidden by the actual snorkel). Meaning... WHAT is under the actual snorkel? There's another bolt i think, right? It's under neath in that cavity that I have marked... I think there's another bolt right. The cowl has 2 bolts. One is clearly visible but the 2nd one that is under the snorkel... is that actuall attached to the snorkel?

You can kind of see it in your 2nd photo but hard to make out.

This link I added has views of the bracket from all angles https://www.ford.com/product/bracket-p4000045655

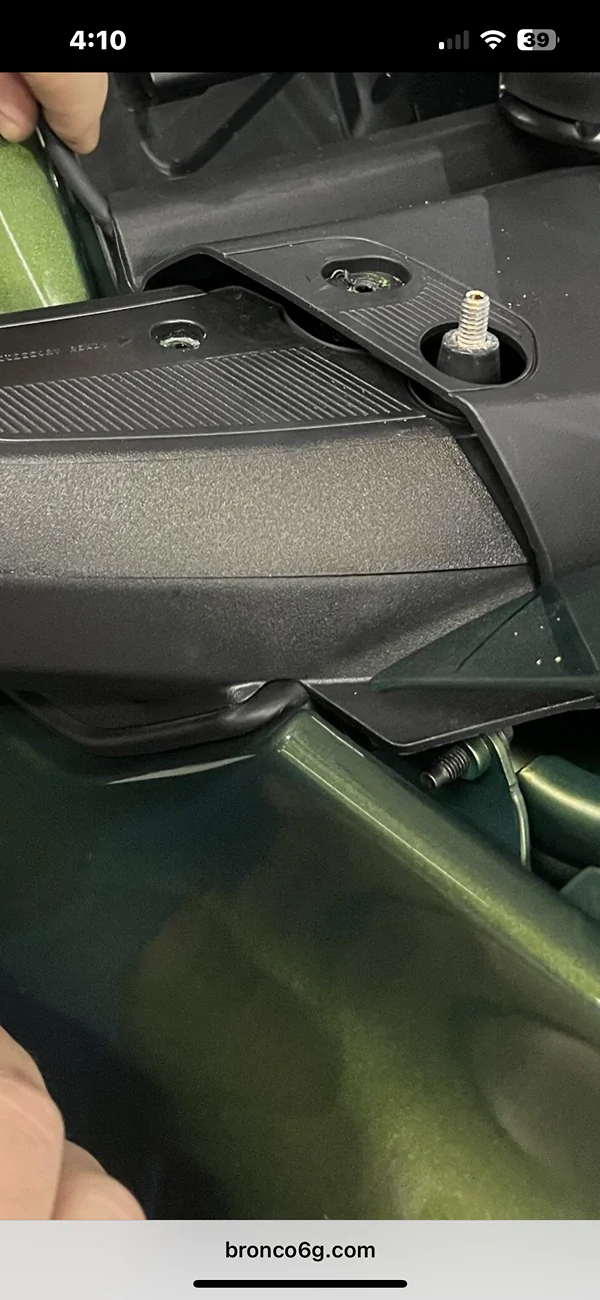

If you are interested in what the bracket mounts to, the bracket sits directly on top of the cowl and mirror arm cover. Split 50/50. And is held on with those same 2 bolt holes.



[4x4TruckLEDs.com]

OKAY yeah thanks that's what we figured. I think people are using the wrong bolts when they install the bracket is all. We provide new flush bolts and I guess people are not using those (and they should)
