Blend Door Actuator - 23' Black Diamond

[JJohnsonx21s]

Good afternoon, All,

Our 23' Ford Bronco Black Diamond 2.7L V6 has cold air blowing out of the drivers side vents, no matter the setting. Took it to a service shop and they told me it's the Blend Door Actuator. From my search, Ive seen there are three. Does anyone have a clue which one operates which sections? Thank you!

Sponsored



[Ducati1098]

Which climate control system do you have? I’m assuming you have the dual zone automatic system if only your drivers side is cold?



[JJohnsonx21s]

Which climate control system do you have? I’m assuming you have the dual zone automatic system if only your drivers side is cold?

Yes! It’s a dual zone. And if I am looking at this correctly the driver side actuator is on the passenger side of the bronco?



[Ducati1098]

Yes! It’s a dual zone. And if I am looking at this correctly the driver side actuator is on the passenger side of the bronco?

It’s more so in the middle, but it is on the drivers side of the climate control housing.

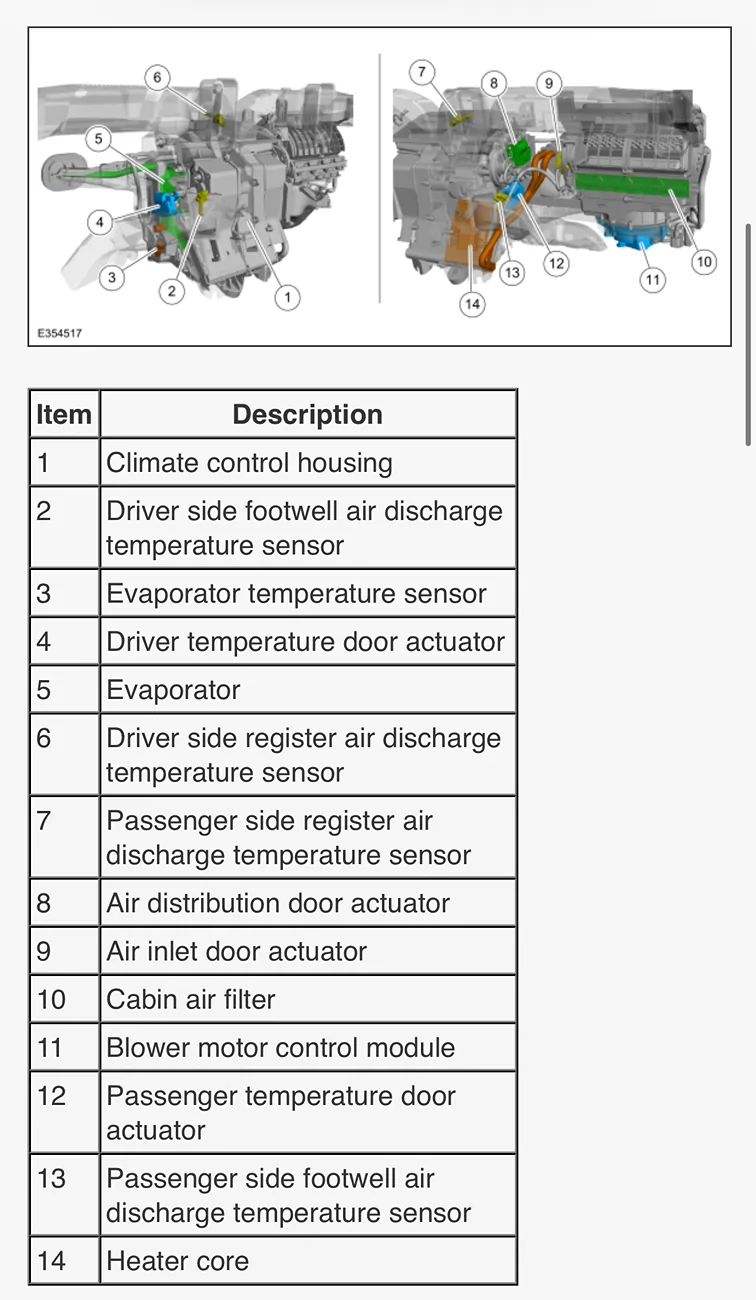

The left picture in the diagram above is basically the view from the drivers seat if you could see through the instrument panel. The actuator you’re looking for is #4



[JJohnsonx21s]

It’s more so in the middle, but it is on the drivers side of the climate control housing.

The left picture in the diagram above is basically the view from the drivers seat if you could see through the instrument panel. The actuator you’re looking for is #4

Awesome! Thank you!
