Hello everyone,

I received the wrong OBDii plug with my Powerstep XLs. AMP will send me the correct one but they are out of stock with no real timeline for shipping. Meanwhile my steps are installed and non functional. Does anyone know the pins that are used on the 4 wire OBDii that AMP uses. I can buy a dummy OBDii that has all 16 pins wired but I don't which 4 the correct harness uses. I can cut apart the one I did receive to figure out the purple and purple with stripe but I don't don't know what pins the white and blue use.

Does onyone know the pinout for the OBDii plug?

Thanks,

Larry

Sponsored



[bucketdad]

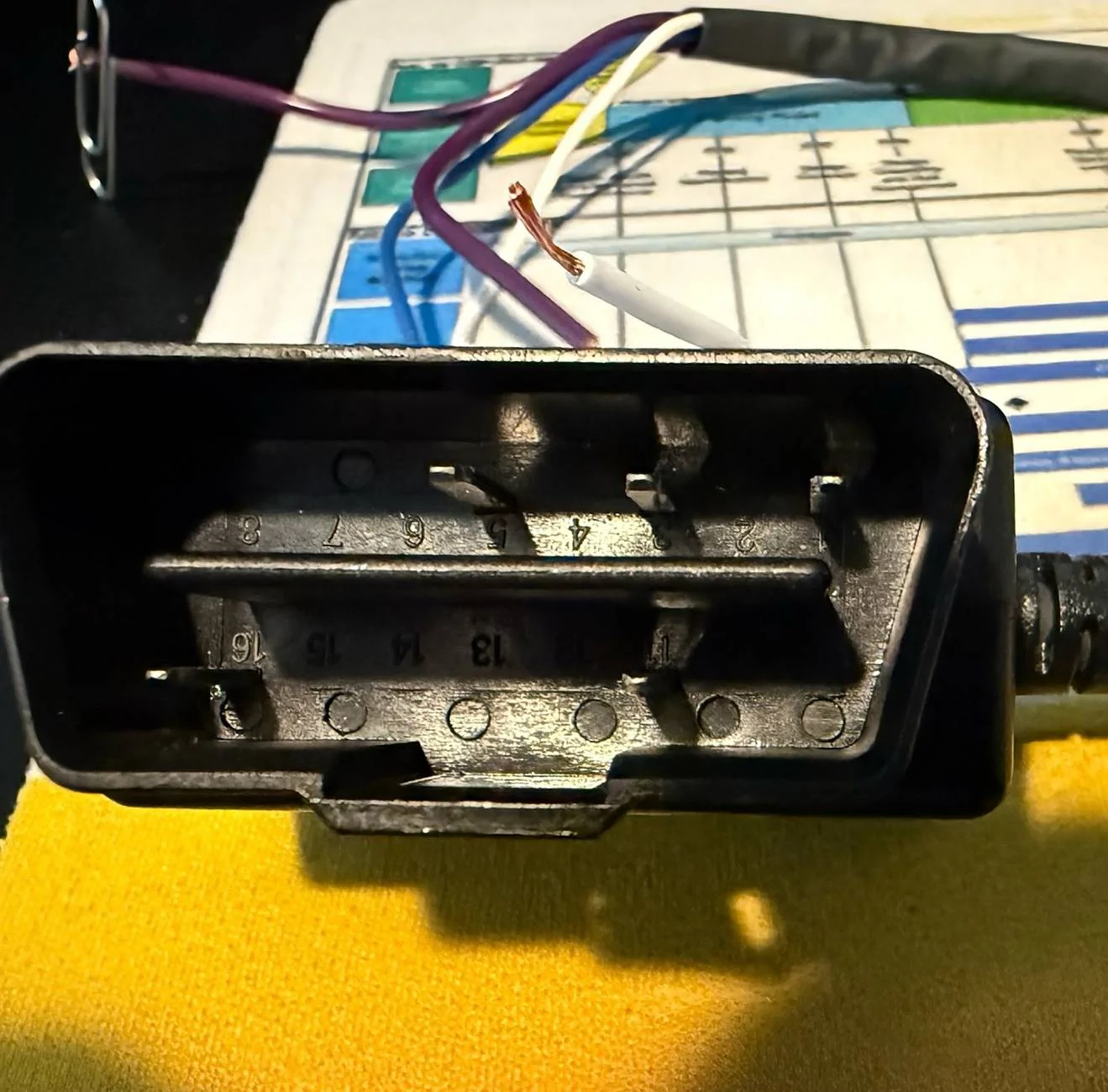

Well I don't have all the answers but I did finally receive my new OBDII plug for the steps. The steps use pin 1, 3, 5, 11, and 16.

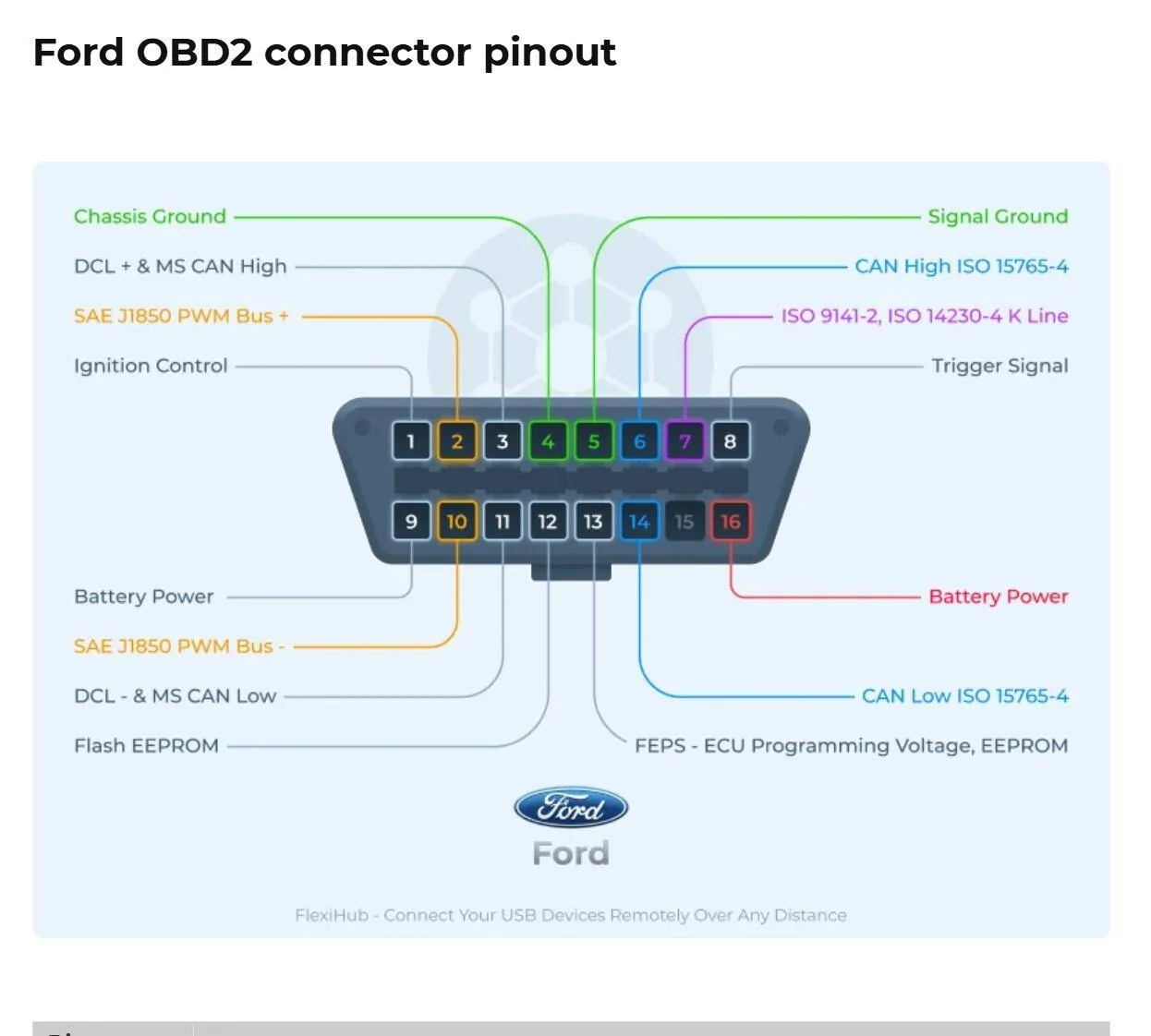

I'm not sure which wire goes to which pin though. I might play around try to find out. Those pins correlate to Pin 1 Ignition Control, Pine 3 Canbus High, Pin 5 Signal ground, Pin 11 Canbus low, Pin 16 Battery Power.

I'm assuming the purple and purple with black stripe are 3 and 11 in some combination so that leaves white and blue for the tie into the factory canbus harness.

Not sure if this helps anyone but its what I know so far.

Larry
